MicroFit MFHLP30214 Replaces the Sofima SV30823FT1

SV30823FT1
SV30823FT1
Representative product image Product image feedback

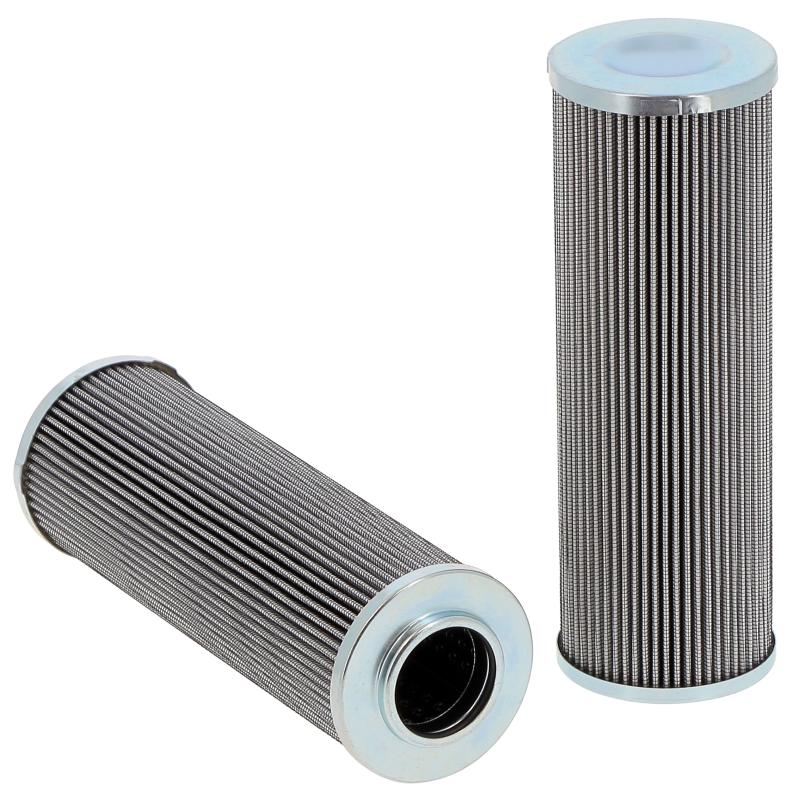

MicroFit® UltraGen III MFHLP30214 Pressure Filter | Replaces the Sofima SV30823FT1

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP30214 is the MICROFIT® approved replacement to the Sofima SV30823FT1. Engineered and manufactured in Great Britain the MFHLP30214

Price Match
$113.00
1.46 kg
0.0014 m³
United Kingdom
8421.99.90
0.7 kg
0.002 m³
France
8421.99.90
0.67 kg
0.0014 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP30214 is the MICROFIT® approved replacement to the Sofima SV30823FT1. Engineered and manufactured in Great Britain the MFHLP30214

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 232.0 mm
Δ Collapse Pressure 21 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Sofima Brand Logo

Same Fit-Form & Function

As the Genuine Sofima SV30823FT1

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Pressure Filter
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 232.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Nitrile
Temperature Range -30 - +100°C
