Specification

StyleReturn Filter
MediaWire Mesh
Efficiency 110µ
Outer Diameter 202.0 mm
Inner Diameter 157.0 mm
Length 1090.0 mm
Seal MaterialNitrile
Temperature Range -30 - +100°C
Fleetguard Brand Logo

Fleetguard Product

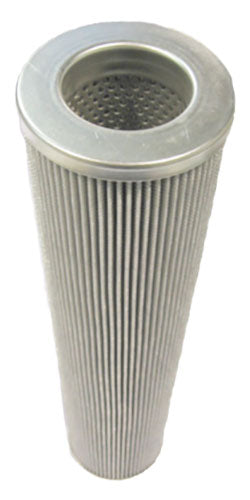

Genuine Fleetguard ST1410

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ
Efficiency 2
Style Return Filter
Outer Diameter 202.0 mm
Inner Diameter 157.0 mm
Length 1090.0 mm
Media Type Wire Mesh
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
