Summary

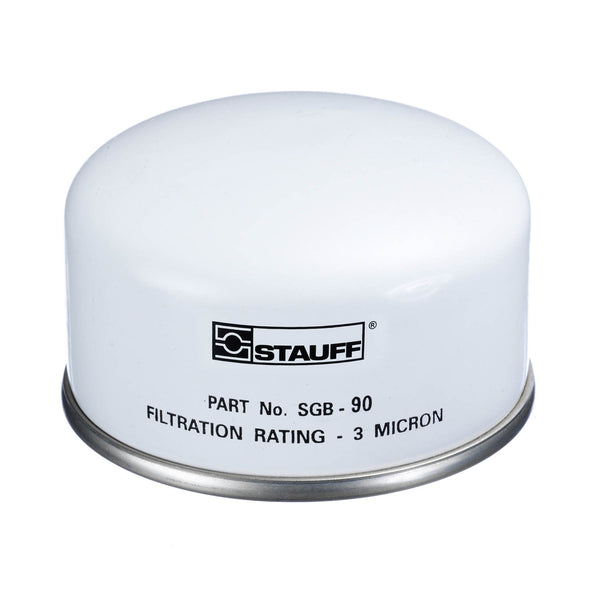

Stauff SGB-090-03-B Replaces the Stauff SGB09003B

Stauff SGB09003B
Stauff SGB09003B
Representative product image Product image feedback

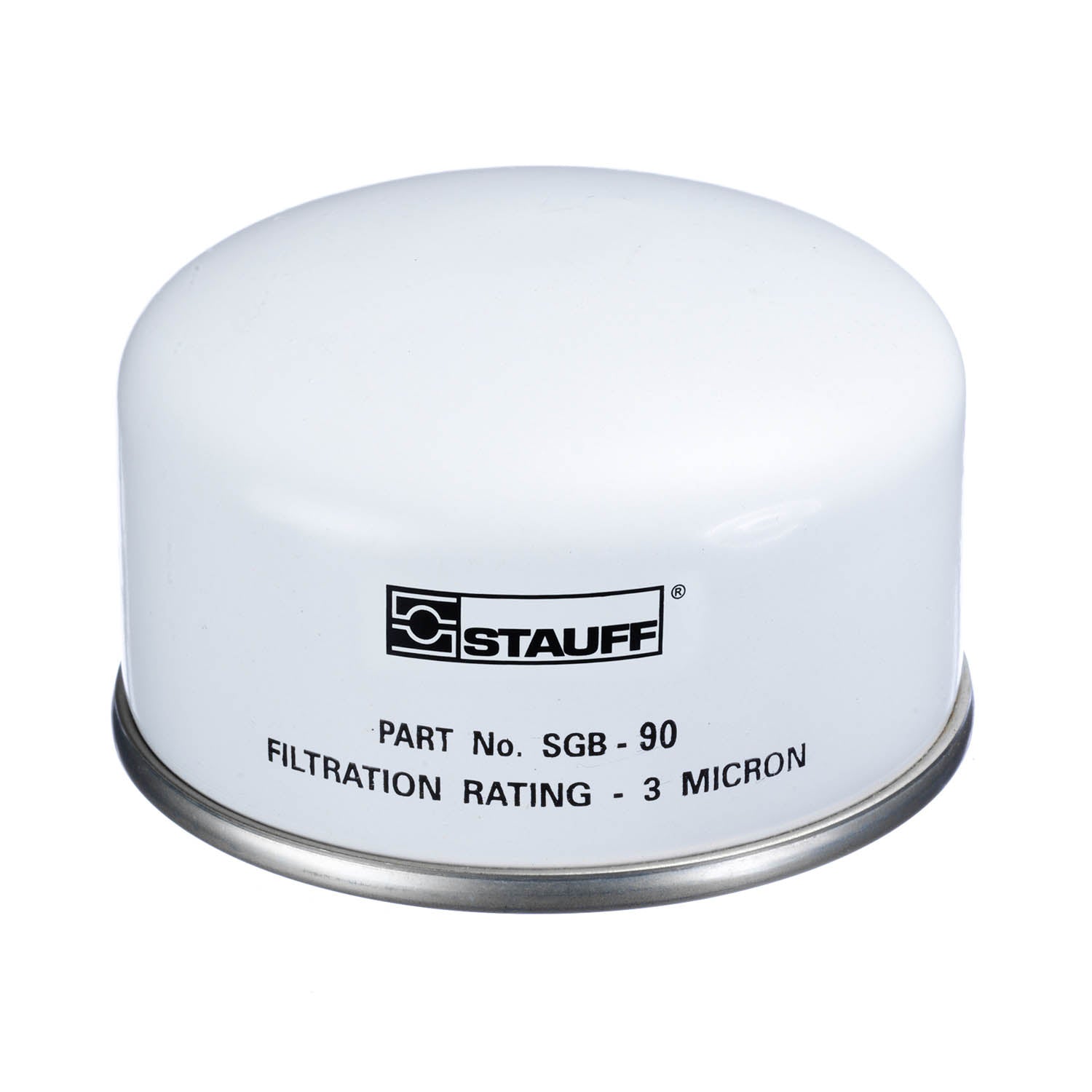

Stauff SGB-090-03-B Spin-On Filter

Brand: Stauff
Description

Particle Breather (Air Breather Element) Diameter 100 mm Spin-On Design G3/4 BSP Female Inorganic Glass Fibre Micron Rating 3 μm

Price Match
$70.00
Germany
8421.99.90
0.29 kg
0.0006 m³
Italy
8421.99.90
0.48 kg
0.0007 m³
Italy
8421.23.00
Shipping Terms

Description

Particle Breather (Air Breather Element) Diameter 100 mm Spin-On Design G3/4 BSP Female Inorganic Glass Fibre Micron Rating 3 μm

Specification

StyleSpin-On Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 96.0 mm
Length 60.0 mm
Thread3/4" BSP
Δ Collapse Pressure 12 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Stauff Brand Logo

Stauff Product

Genuine Stauff SGB-090-03-B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Spin-On Filter
Outer Diameter 96.0 mm
Inner Diameter
Length 60.0 mm
Media Type Glass Fiber
Flow Direction
Thread 3/4" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 12 BAR
Seal Nitrile
Temperature Range -30 - +100°C
