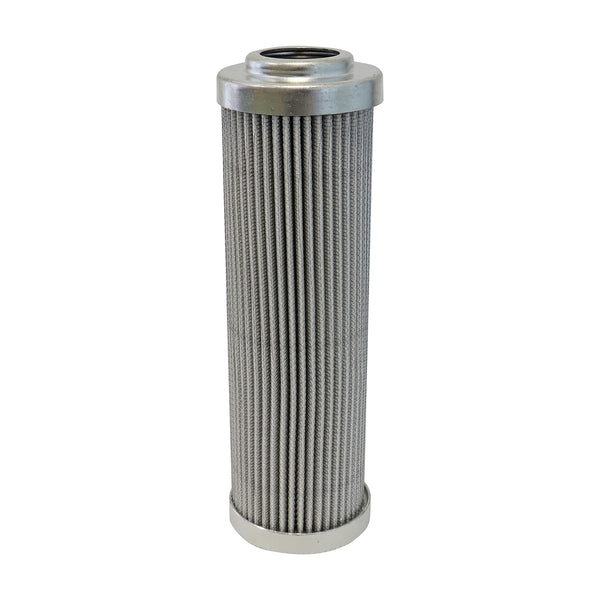

Stauff SE-030-H-05-B/4 Replaces the Stauff SE030H05B
Stauff SE-030-H-05-B/4 Pressure Filter | Replaces the Stauff SE030H05B
SE-030-H-05-B/4
Stauff
Stauff SE030H05B
Stauff
Stauff SE030H05B
Brand:
Stauff
Description
Replacement Filter Element for Pressure Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 47 Inner Diameter (mm): 22,2 Length (mm): 153 Sealing: NBR, β ratio >200
Regular price
$145.00
Unit price
per
Germany
8421.99.90
0.37 kg
0.0003 m³
United Kingdom
8421.99.90
0.37 kg
0.0003 m³
Italy
8421.99.90
0.34 kg
0.0007 m³
France
8421.99.90
0.35 kg
0.0006 m³
Germany
8421.23.00
Description
Replacement Filter Element for Pressure Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 47 Inner Diameter (mm): 22,2 Length (mm): 153 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Media | Glass Fiber |
| Efficiency 1 | 5µ @ β200 |
| Efficiency 2 | 7µ @ β1000 |
| Outer Diameter | 47.0 mm |
| Inner Diameter | 22.1 mm |
| Length | 153.0 mm |
| Δ Collapse Pressure | 210 bar |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
