MicroFit MFHHP40627 Replaces the Stauff SE-090-H-20-V/4

SE-090-H-20-V/4
SE-090-H-20-V/4

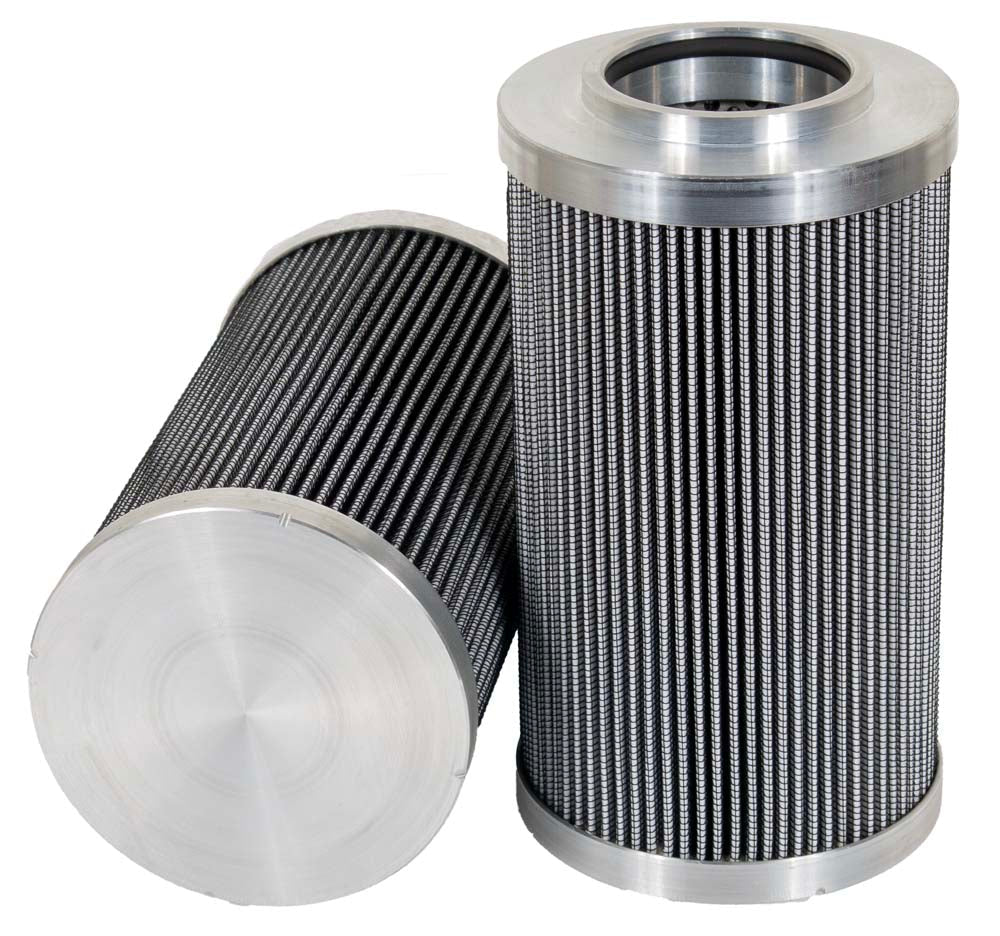

Representative product image Product image feedback

MicroFit® UltraGen III MFHHP40627 Pressure Filter | Replaces the Stauff SE-090-H-20-V/4

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP40627 is the MICROFIT® approved replacement to the Stauff SE-090-H-20-V/4. Engineered and manufactured in Great Britain the MFHHP40627

Price Match
$255.00
2.89 kg
0.0013 m³
United Kingdom
8421.99.90
1.32 kg
0.0013 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40627 is the MICROFIT® approved replacement to the Stauff SE-090-H-20-V/4. Engineered and manufactured in Great Britain the MFHHP40627

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 90.5 mm
Inner Diameter 48.1 mm
Length 162.0 mm
Δ Collapse Pressure 210 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Stauff Brand Logo

Same Fit-Form & Function

As the Genuine Stauff SE-090-H-20-V/4

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Pressure Filter
Outer Diameter 90.5 mm
Inner Diameter 48.1 mm
Length 162.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 210 BAR
Seal Viton
Temperature Range -25 - +120°C
