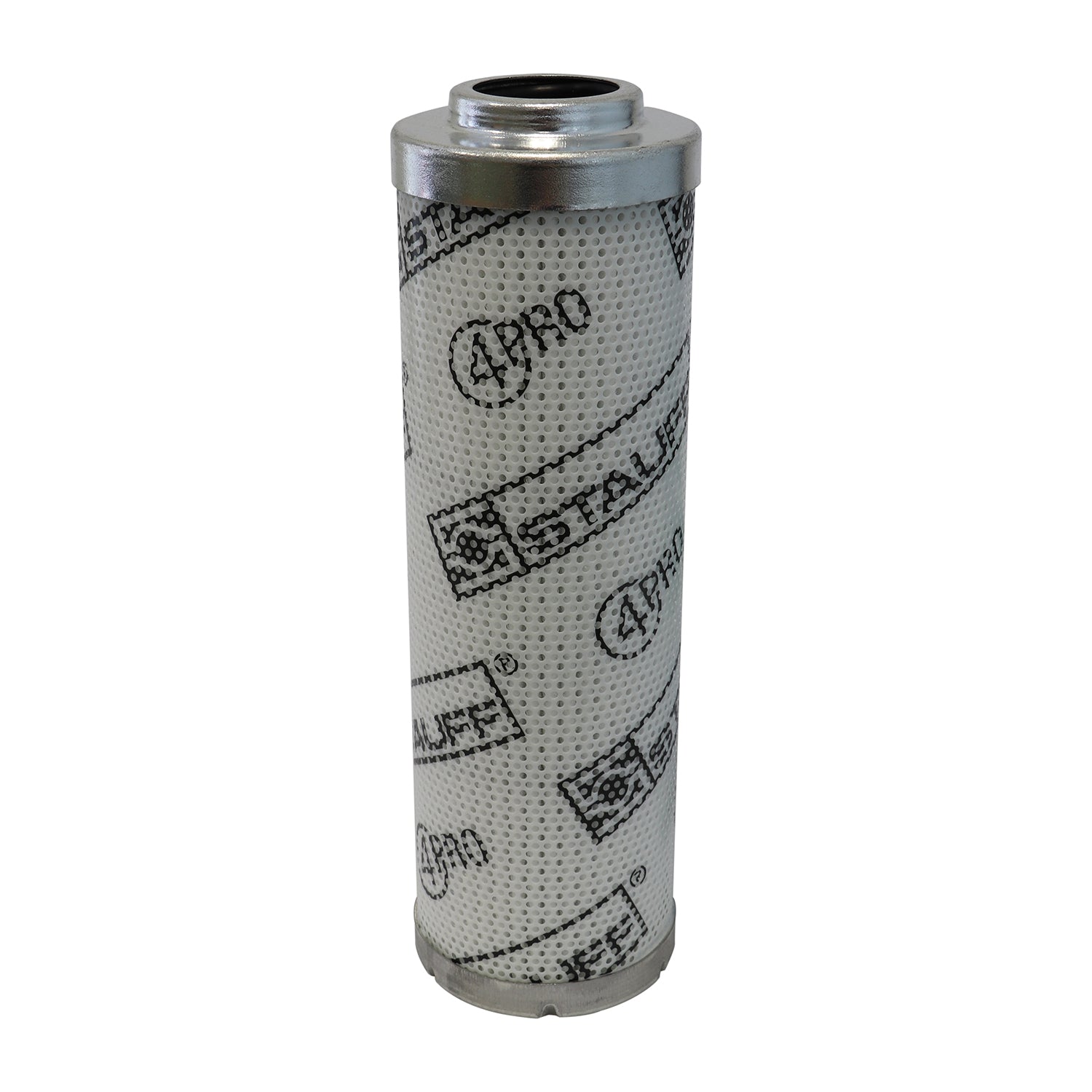

Stauff SE-030-G-20-V/4 Replacement Pressure Filter
Stauff SE-030-G-20-V/4 Pressure Filter
SE-030-G-20-V/4
Stauff
Stauff
Brand:
Stauff
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 47 Inner Diameter (mm): 22,2 Length (mm): 153 Sealing: FPM, β ratio >200
Regular price
$93.00
Unit price
per
1596 pcs
Germany
8421.99.90
0.24 kg
0.0003 m³
1596 pcs
Italy
8421.99.90
0.51 kg
0.0003 m³
1596 pcs
United Kingdom
8421.99.90
0.18 kg
0.0009 m³
1596 pcs
United States
8421.29.80.90
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 47 Inner Diameter (mm): 22,2 Length (mm): 153 Sealing: FPM, β ratio >200Specification
| Style | Pressure Filter |
| Media | Glass Fiber |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 47.0 mm |
| Inner Diameter | 22.4 mm |
| Length | 153.0 mm |
| Δ Collapse Pressure | 20 bar |
| Seal Material | Viton |
| Temperature Range | -25 - +120°C |
