MicroFit MFHHP41010 Replaces the Schroeder SBF98014S7V

SBF98014S7V
SBF98014S7V
Representative product image Product image feedback

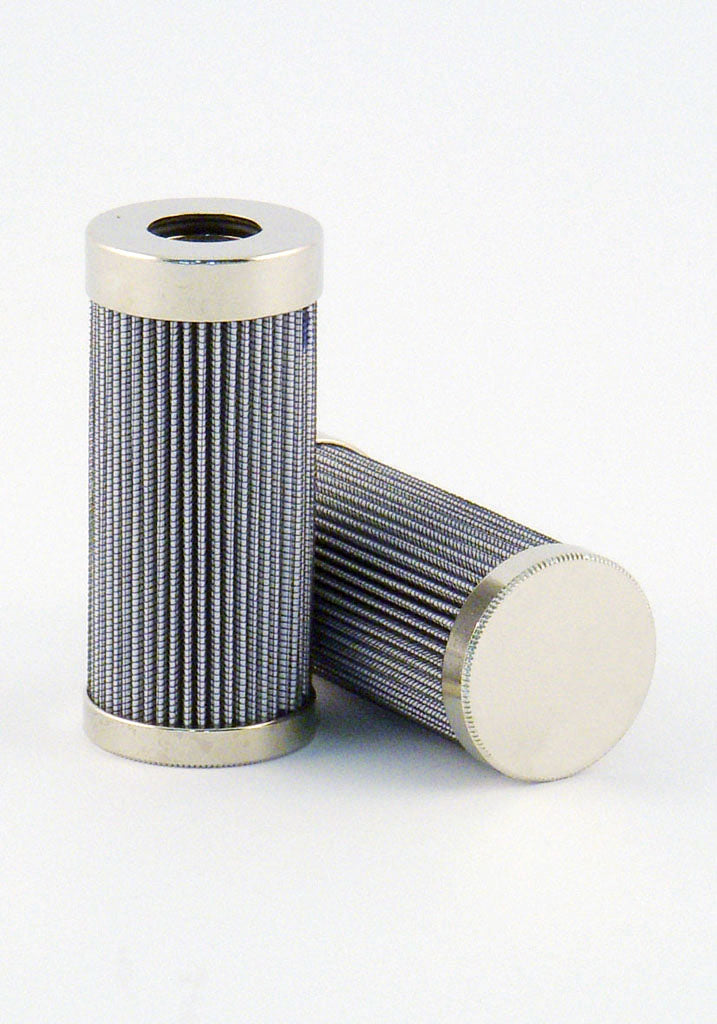

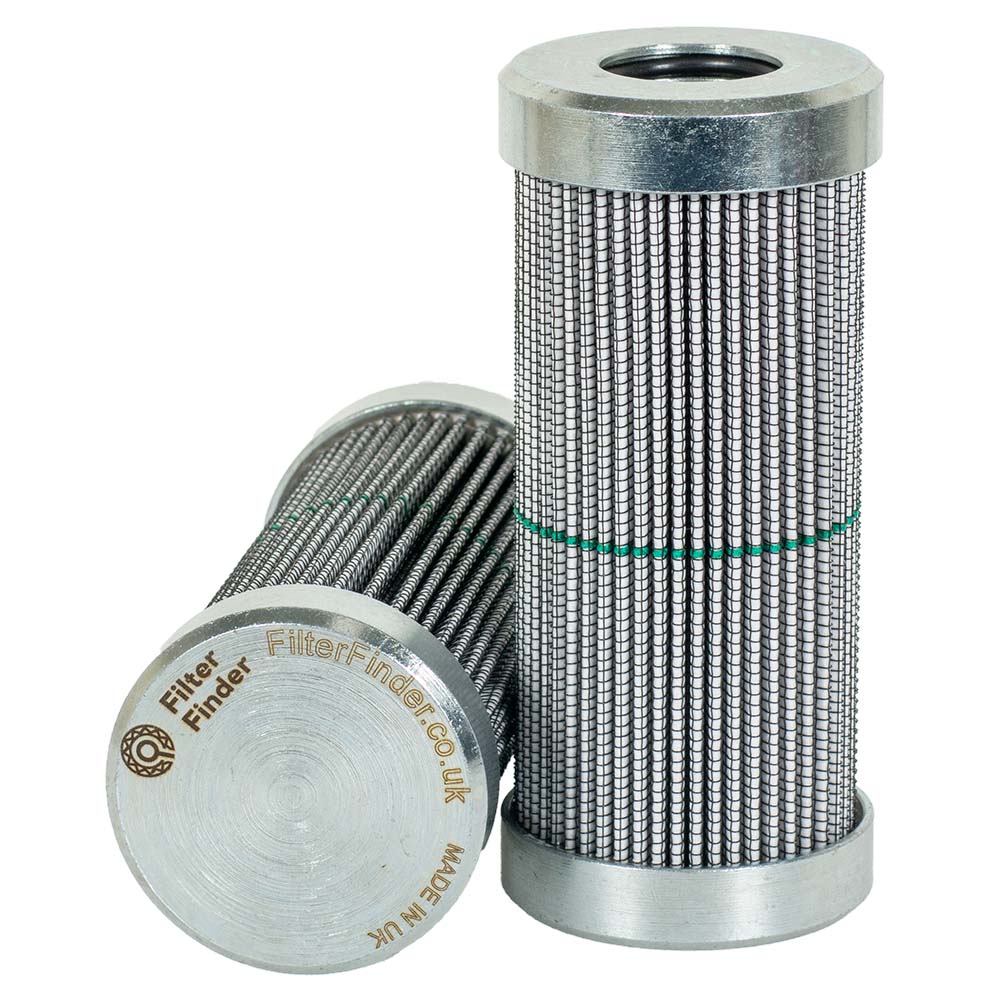

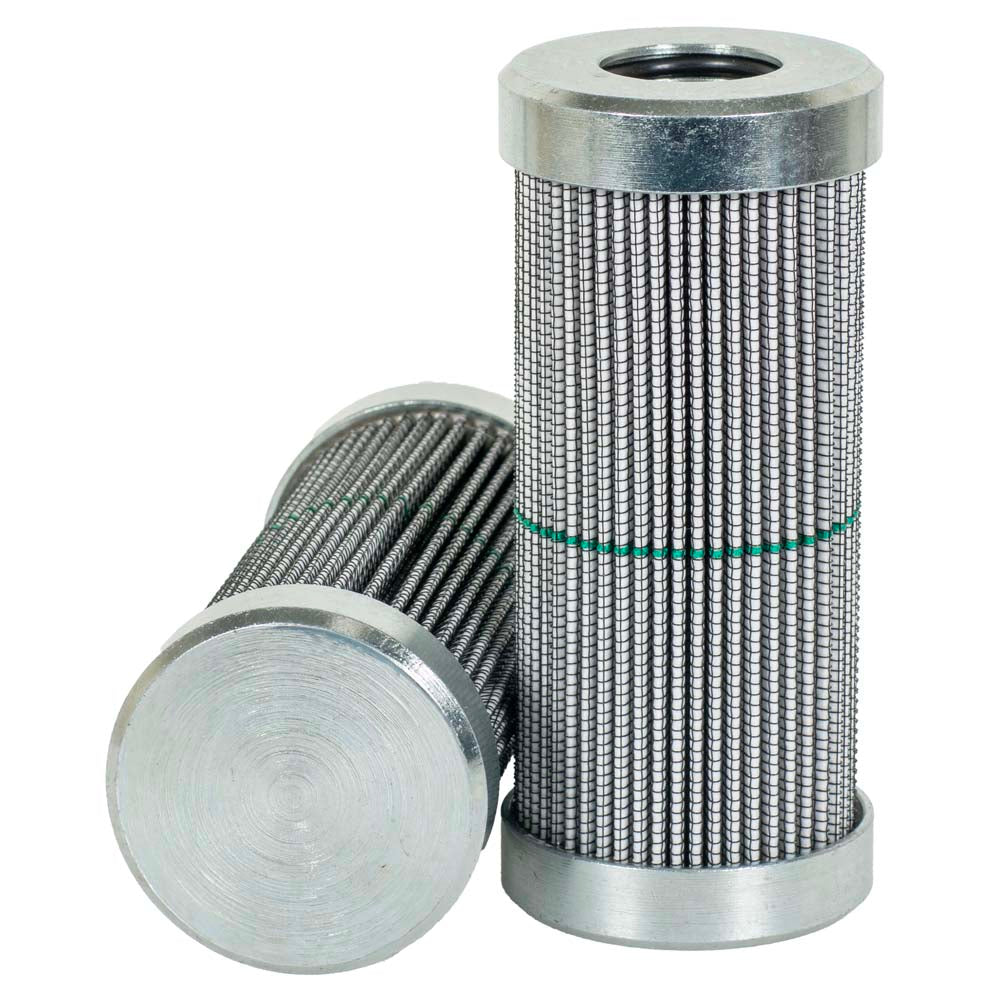

MicroFit® UltraGen III MFHHP41010 Pressure Filter | Replaces the Schroeder SBF98014S7V

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP41010 is the MICROFIT® approved replacement to the Schroeder SBF98014S7V. Engineered and manufactured in Great Britain the MFHHP41010

Price Match
$134.00
0.65 kg
0.0003 m³
United Kingdom
8421.99.90
0.1 kg
0.001 m³
France
8421.99.90
0.3 kg
0.0003 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP41010 is the MICROFIT® approved replacement to the Schroeder SBF98014S7V. Engineered and manufactured in Great Britain the MFHHP41010

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 51.0 mm
Inner Diameter 23.8 mm
Length 114.0 mm
Δ Collapse Pressure 210 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Schroeder Brand Logo

Same Fit-Form & Function

As the Genuine Schroeder SBF98014S7V

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 51.0 mm
Inner Diameter 23.8 mm
Length 114.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 210 BAR
Seal Viton
Temperature Range -25 - +120°C
