Summary

MicroFit MFHHP40039 Replaces the Schroeder SBF90218Z10V

MICROFIT MFHHP40039
MICROFIT MFHHP40039

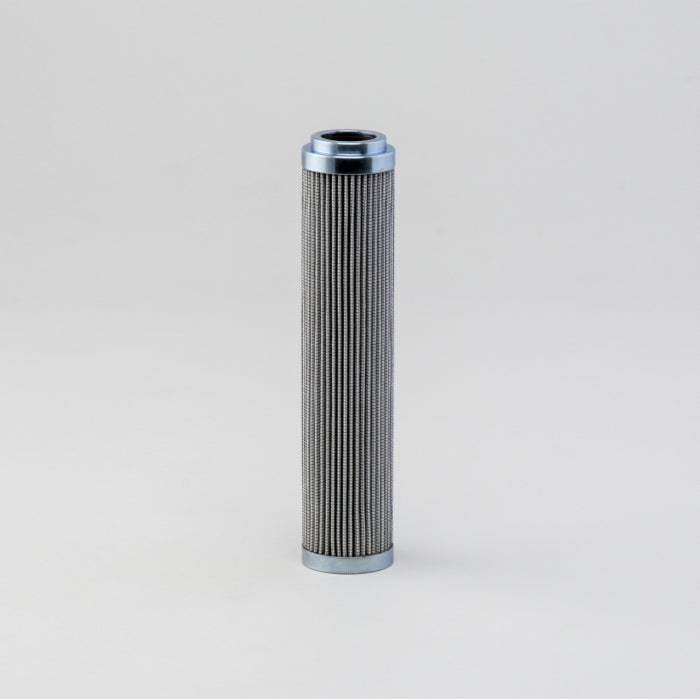

Representative product image Product image feedback

MicroFit® UltraGen III MFHHP40039 Pressure Filter | Replaces the Schroeder SBF90218Z10V

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP40039 is the MICROFIT® approved replacement to the Schroeder SBF90218Z10V. Engineered and manufactured in Great Britain the MFHHP40039

Price Match
$132.00
0.93 kg
0.0004 m³
960 pcs
United Kingdom
8421.99.90
0.42 kg
0.0008 m³
960 pcs
United States
8421.29.80.90
0.43 kg
0.0009 m³
960 pcs
France
8421.99.90
0.42 kg
0.0004 m³
960 pcs
Italy
8421.99.90
0.49 kg
0.001 m³
960 pcs
Mexico
8421.23.00
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40039 is the MICROFIT® approved replacement to the Schroeder SBF90218Z10V. Engineered and manufactured in Great Britain the MFHHP40039

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 45.0 mm
Inner Diameter 25.4 mm
Length 210.0 mm
Δ Collapse Pressure 210 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Schroeder Brand Logo

Same Fit-Form & Function

As the Genuine Schroeder SBF90218Z10V

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 45.0 mm
Inner Diameter 25.4 mm
Length 210.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 210 BAR
Seal Viton
Temperature Range -25 - +120°C
