Stauff RP-080-E-20-B Replaces the Stauff RP080E20B4

Stauff RP080E20B4
Stauff RP080E20B4

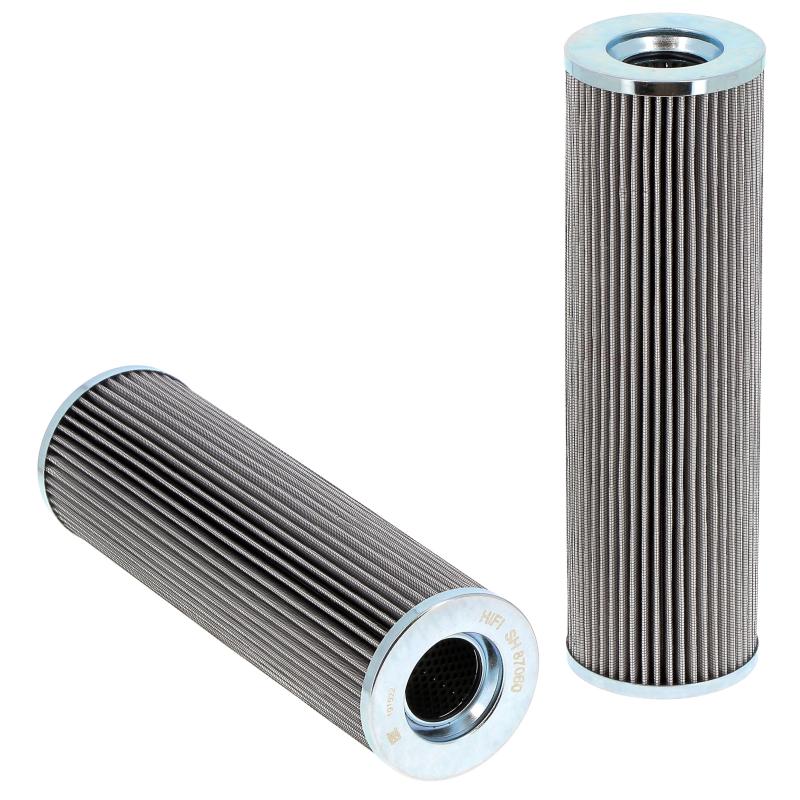

Representative product image Product image feedback

Stauff RP-080-E-20-B Return Filter | Replaces the Stauff RP080E20B4

Brand: Stauff
Description

Return Line Filter Element Inorganic Glass Fibre 30 bar 20 µm

Price Match
$274.00
Germany
8421.99.90
2.91 kg
0.003 m³
United Kingdom
8421.99.90
1.32 kg
0.003 m³
Italy
8421.99.90
1.18 kg
0.004 m³
France
8421.99.90
Shipping Terms

Description

Return Line Filter Element Inorganic Glass Fibre 30 bar 20 µm

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 96.5 mm
Inner Diameter 43.0 mm
Length 327.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Stauff Brand Logo

Stauff Product

Genuine Stauff RP-080-E-20-B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Return Filter
Outer Diameter 96.5 mm
Inner Diameter 43.0 mm
Length 327.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
