Stauff RP-020-E-03-B/4 Replacement Return Filter

Stauff RP-020-E-03-B/4
Stauff RP-020-E-03-B/4
Representative product image Product image feedback

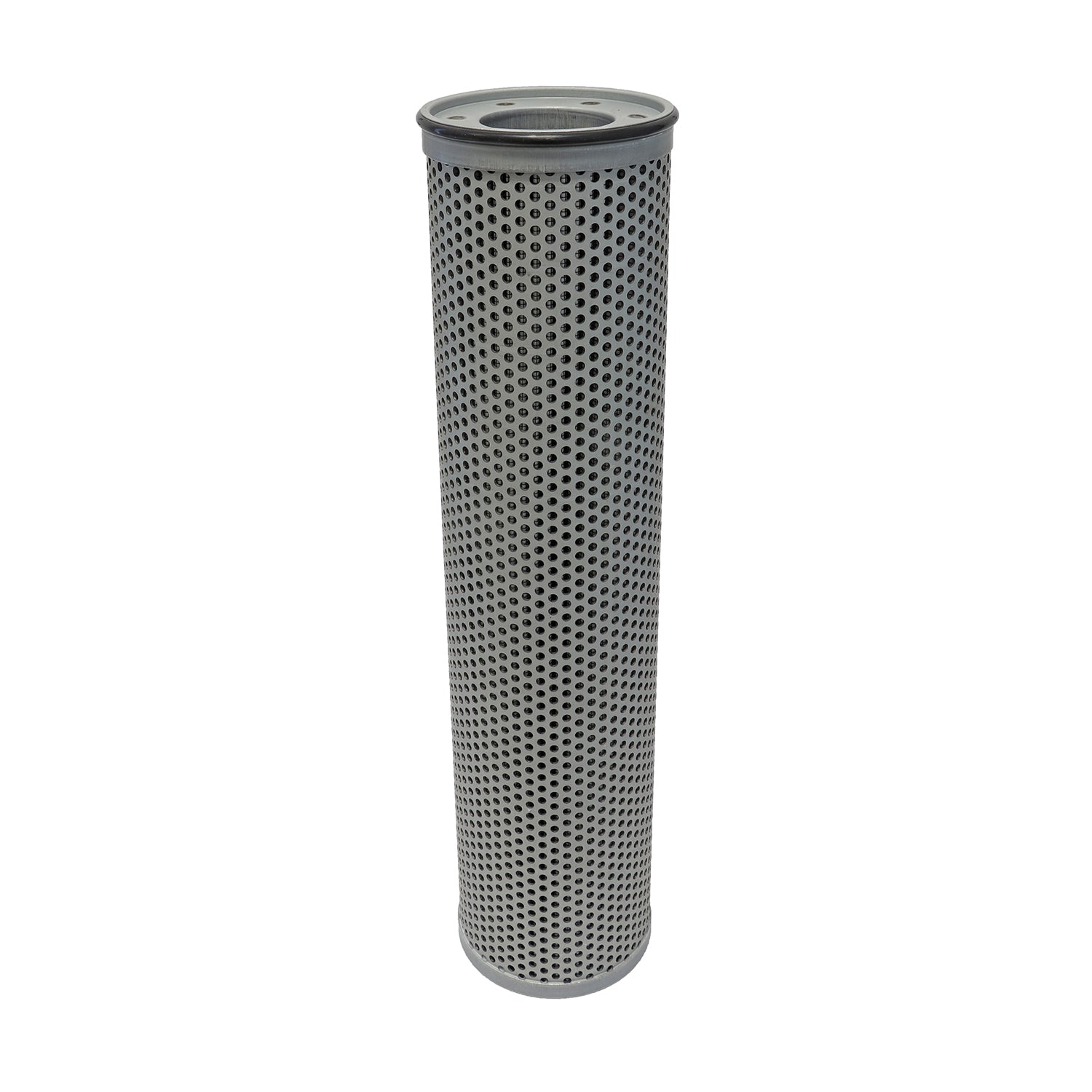

Stauff RP-020-E-03-B/4 Return Filter

Brand: Stauff
Description

Replacement Filter Element for Return-Line Filters Micron Rating: 3 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 78 Inner Diameter (mm): 41,5 Length (mm): 328 Sealing: NBR, β ratio >200

Price Match
$295.00
Germany
8421.99.90
0.77 kg
0.002 m³
Italy
8421.99.90
0.88 kg
0.0029 m³
France
8421.99.90
0.77 kg
United Kingdom
8421.99.90
Shipping Terms

Description

Replacement Filter Element for Return-Line Filters Micron Rating: 3 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 78 Inner Diameter (mm): 41,5 Length (mm): 328 Sealing: NBR, β ratio >200

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 78.0 mm
Inner Diameter 41.5 mm
Length 327.0 mm
Seal MaterialNitrile
Temperature Range -30 - +100°C
Stauff Brand Logo

Stauff Product

Genuine Stauff RP-020-E-03-B/4

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Return Filter
Outer Diameter 78.0 mm
Inner Diameter 41.5 mm
Length 327.0 mm
Media Type Glass Fiber
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
