Stauff RL-005-L-20-B Replacement Return Filter

Stauff RL-005-L-20-B
Stauff RL-005-L-20-B

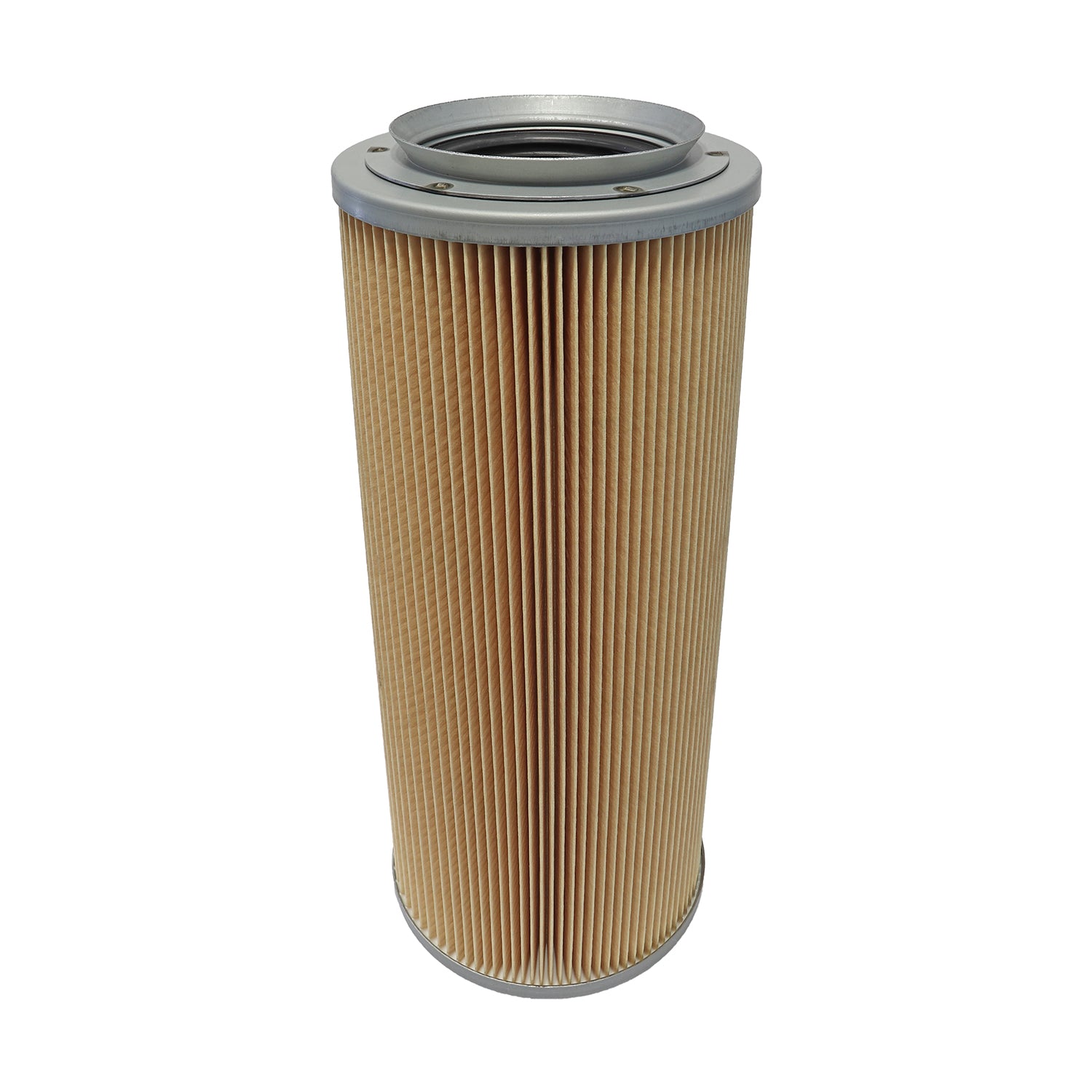

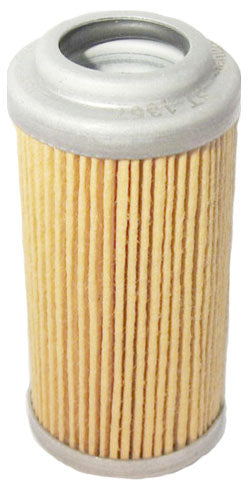

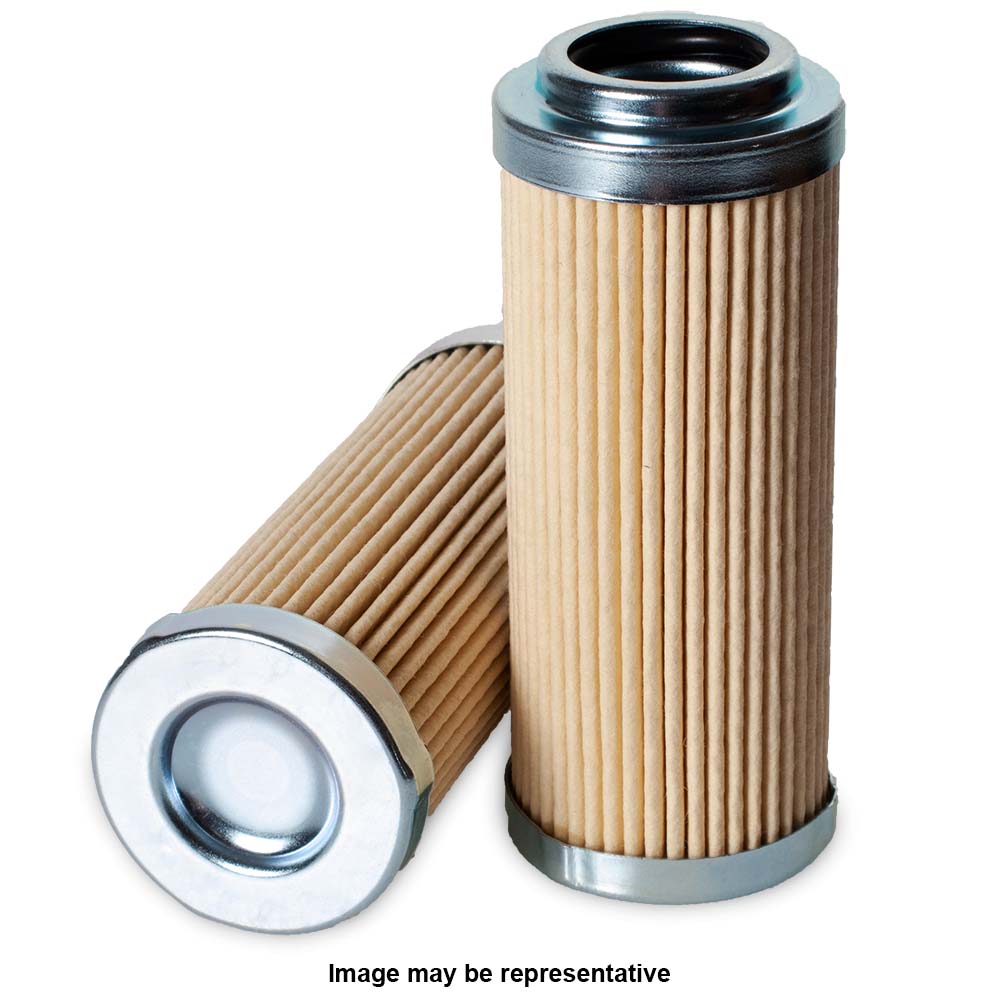

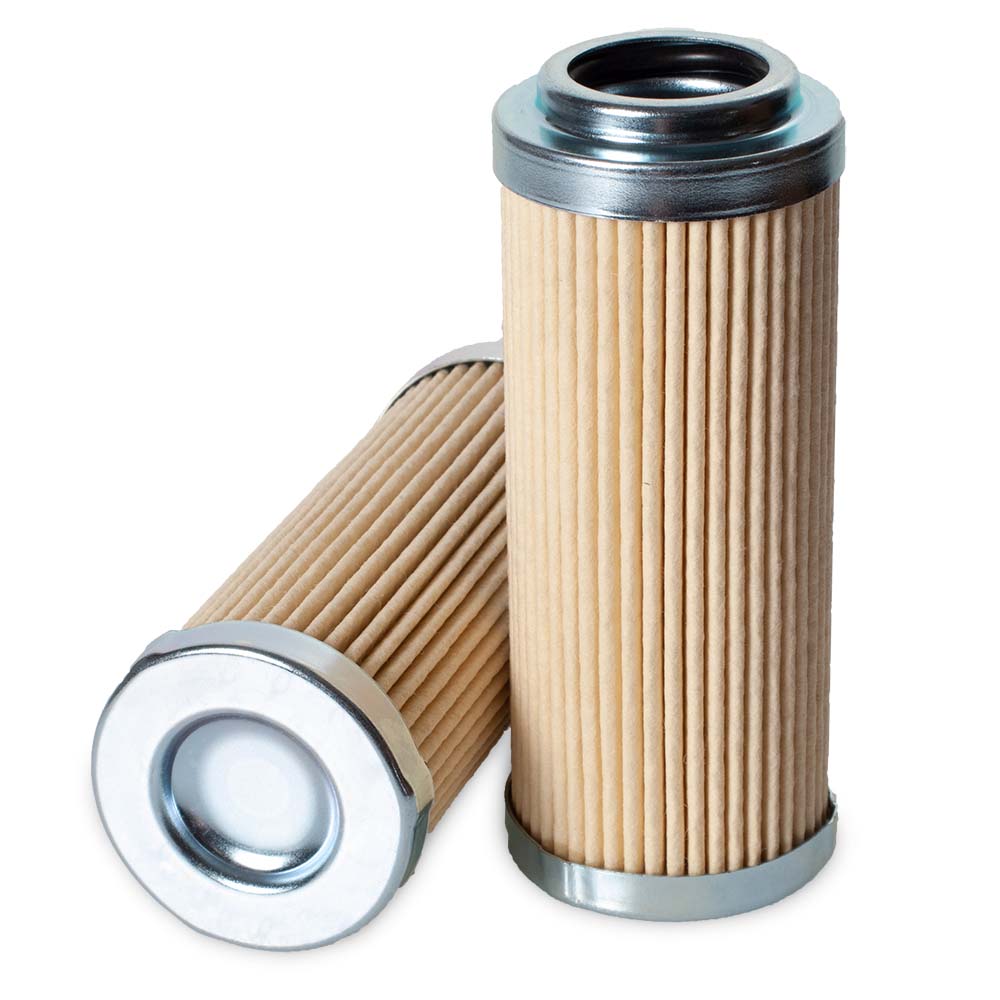

Representative product image Product image feedback

Stauff RL-005-L-20-B Return Filter

Brand: Stauff
Description

Replacement Filter Element for Return-Line Filters Micron Rating: 20 µm Material: Filter Paper Outer Diameter (mm): 41,5 Inner Diameter (mm): 22,6 Length (mm): 91,5 Sealing: NBR, β ratio >2

Price Match
$80.00
Germany
8421.99.90
0.1 kg
0.0003 m³
France
8421.99.90
0.11 kg
0.0002 m³
Italy
8421.99.90
0.11 kg
0.0003 m³
Italy
8421.23.00
Shipping Terms

Description

Replacement Filter Element for Return-Line Filters Micron Rating: 20 µm Material: Filter Paper Outer Diameter (mm): 41,5 Inner Diameter (mm): 22,6 Length (mm): 91,5 Sealing: NBR, β ratio >2

Specification

StyleReturn Filter
MediaCellulose
Efficiency 125µ @ β2
Outer Diameter 42.0 mm
Inner Diameter 22.8 mm
Length 92.0 mm
Δ Collapse Pressure 6 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Stauff Brand Logo

Stauff Product

Genuine Stauff RL-005-L-20-B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ @ β2
Efficiency 2
Style Return Filter
Outer Diameter 42.0 mm
Inner Diameter 22.8 mm
Length 92.0 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 6 BAR
Seal Nitrile
Temperature Range -30 - +100°C
