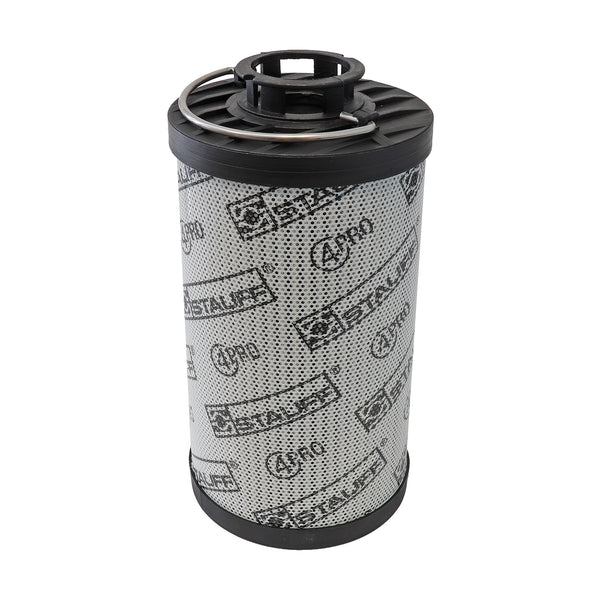

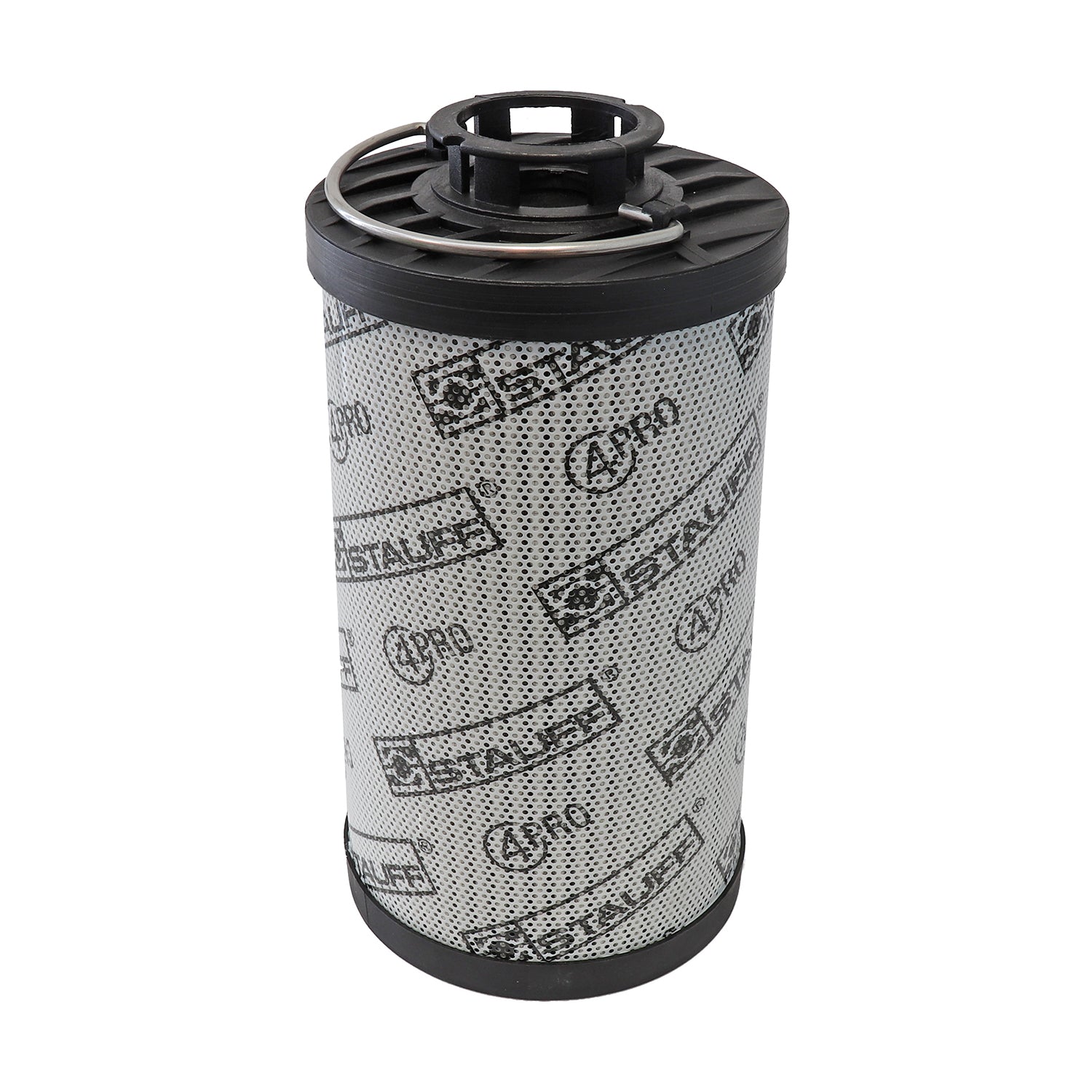

Stauff RE-090-G-10-B/4 Replaces the Stauff RE090G10B
Stauff RE-090-G-10-B/4 Return Filter | Replaces the Stauff RE090G10B
RE-090-G-10-B/4
Stauff
Stauff RE090G10B
Stauff
Stauff RE090G10B
Brand:
Stauff
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 95 Inner Diameter (mm): 48,5 Length (mm): 195 Sealing: NBR, β ratio >200
Regular price
$197.00
Unit price
per
Germany
8421.99.90
0.84 kg
0.0017 m³
Italy
8421.99.90
0.85 kg
0.0022 m³
Germany
8421.23.00
United Kingdom
8421.99.90
Germany
8421.99.90
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 95 Inner Diameter (mm): 48,5 Length (mm): 195 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Media | Glass Fiber |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 94.5 mm |
| Inner Diameter | 48.2 mm |
| Length | 194.0 mm |
| Bypass Pressure | 3.0 BAR bar |
| Δ Collapse Pressure | 20 bar |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
