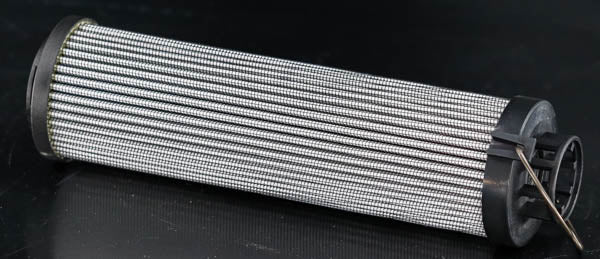

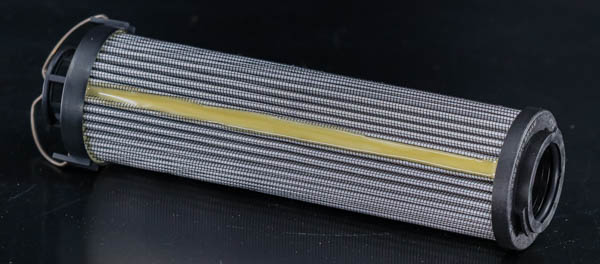

Hydac 0165 R 010 BN4AM Return Filter | Replaces the Stauff RE046GA10B/4

Brand: Hydac
Description

Genuine Hydac 0165 R 010 BN4AM Return Filter.

Built to HYDAC’s OEM specifications and quality standards, this genuine part offers reliable performance, long service life and a precise fit. It’s suitable for a wide range of hydraulic and process applications, helping protect equipment, reduce downtime and maintain system cleanliness. For best results, match the part code to your equipment manual and verify key dimensions and ratings (size, connection, filtration grade/flow) before installation.

Price Match
$211.00
Germany
8421.99.90
0.42 kg
0.0013 m³
France
8421.99.90
0.4 kg
0.0008 m³
Italy
8421.99.90
Shipping Terms

Description

Genuine Hydac 0165 R 010 BN4AM Return Filter.

Built to HYDAC’s OEM specifications and quality standards, this genuine part offers reliable performance, long service life and a precise fit. It’s suitable for a wide range of hydraulic and process applications, helping protect equipment, reduce downtime and maintain system cleanliness. For best results, match the part code to your equipment manual and verify key dimensions and ratings (size, connection, filtration grade/flow) before installation.

Specification

StyleReturn Filter
MediaGlass Fiber + Water Removal
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 228.5 mm
Bypass Pressure 3.0 BAR bar
Δ Collapse Pressure 20 bar
Seal MaterialNitrile
Temperature Range +5 - +100°C
Stauff Brand Logo

Same Fit-Form & Function

As the Genuine Stauff RE046GA10B/4

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Return Filter
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 228.5 mm
Media Type Glass Fiber + Water Removal
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

3.0 BAR
Collapse Pressure 20 BAR
Seal Nitrile
Temperature Range +5 - +100°C
