Stauff RE-014-G-20-B/4 Replaces the Stauff RE014G20B4
Stauff RE-014-G-20-B/4 Return Filter
RE-014-G-20-B/4
Stauff
Stauff
Brand:
Stauff
Description

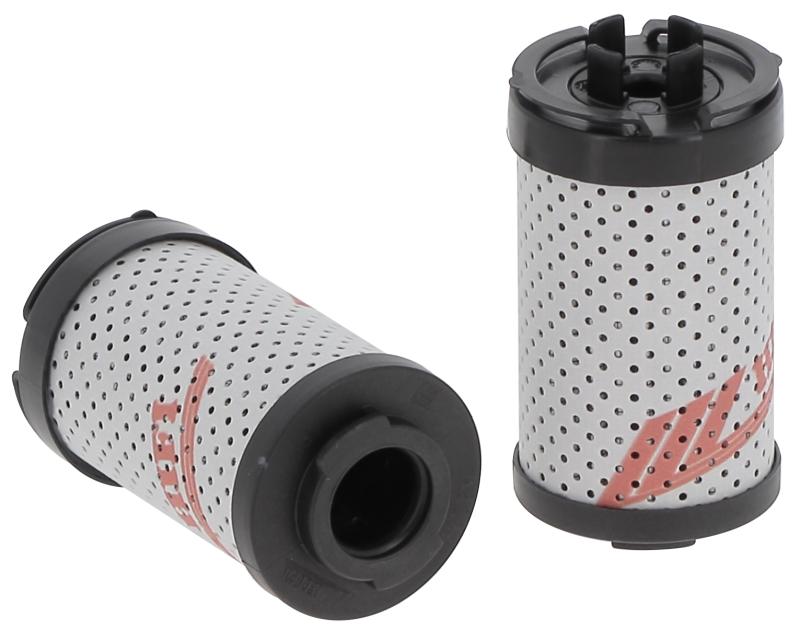

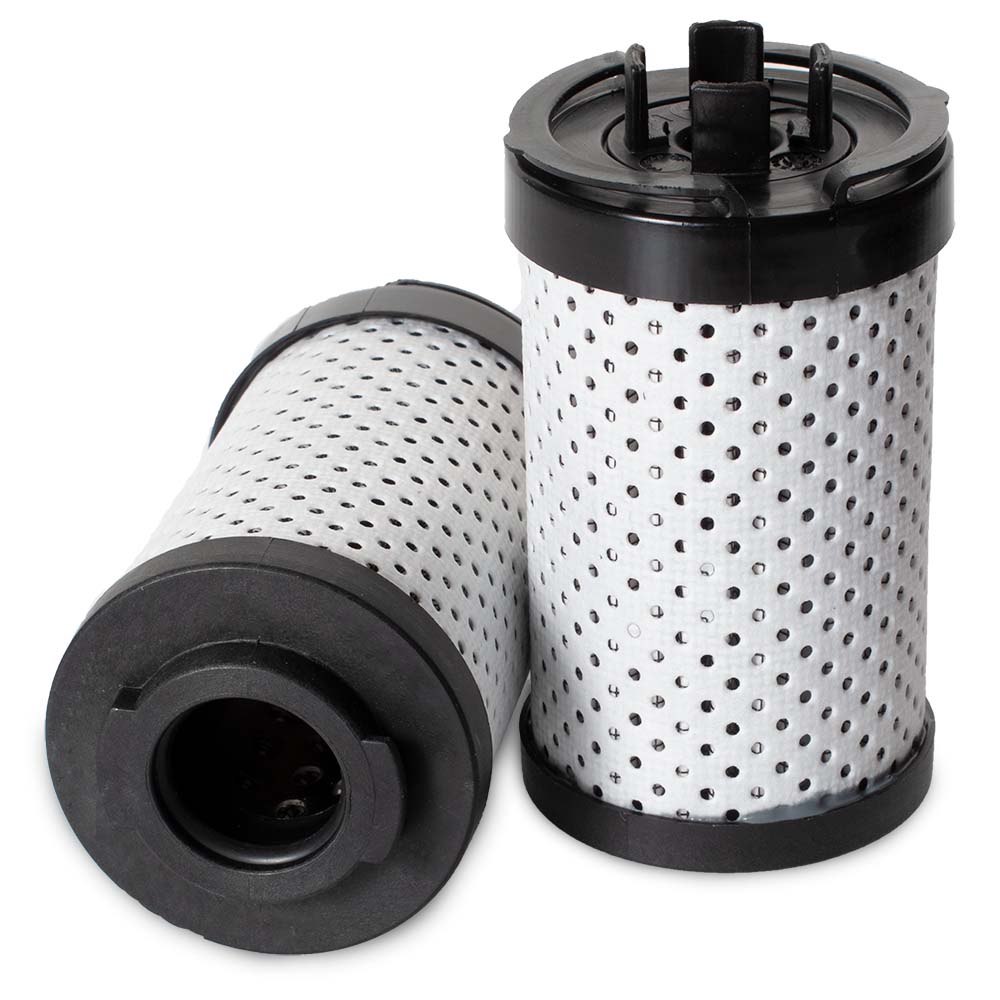

Replacement Filter Element for Return-Line Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 51,5 Inner Diameter (mm): 22,3 Length (mm): 103 Sealing: NBR, β ratio >200
Regular price
$95.00
Unit price
per
Germany
8421.99.90
0.13 kg
0.0003 m³
Italy
8421.99.90
0.14 kg
0.0004 m³
France
8421.99.90
0.13 kg
United Kingdom
8421.99.90
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 51,5 Inner Diameter (mm): 22,3 Length (mm): 103 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Media | Glass Fiber |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 52.0 mm |
| Inner Diameter | 22.2 mm |
| Length | 100.0 mm |
| Bypass Pressure | 3.0 BAR bar |
| Δ Collapse Pressure | 20 bar |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
