Donaldson P766495 Replacement Hydraulic Assembly

Donaldson P766495
Donaldson P766495
Watch video
▶
Representative product image Product image feedback

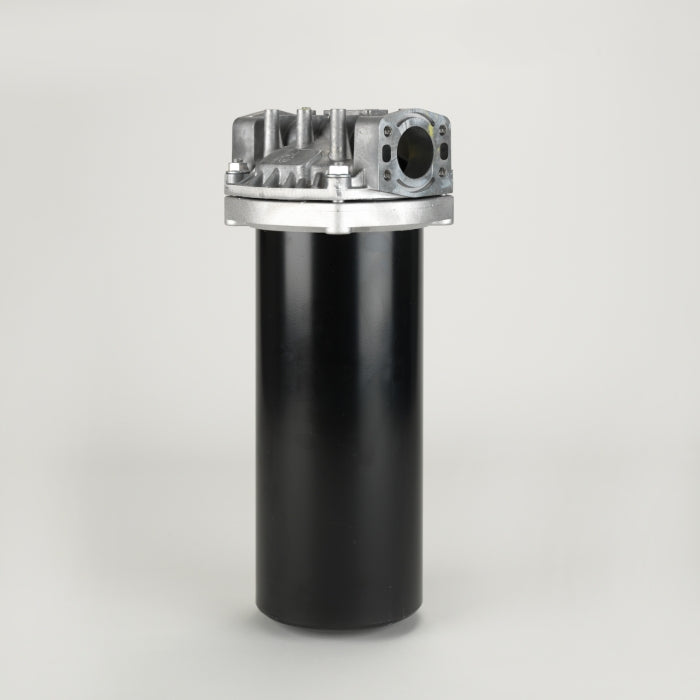

Donaldson P766495 Hydraulic Assembly

Brand: Donaldson
Description

Genuine Donaldson P766495 Hydraulic Assembly is designed to provide reliable performance in hydraulic assembly applications. Built with high-quality materials, it ensures consistent functionality and durability.

Ideal for industrial, automotive, or heavy-duty environments, this component enhances system performance and longevity.

Price Match
$402.00
United States
8421.29.00
Shipping Terms

Description

Genuine Donaldson P766495 Hydraulic Assembly is designed to provide reliable performance in hydraulic assembly applications. Built with high-quality materials, it ensures consistent functionality and durability.

Ideal for industrial, automotive, or heavy-duty environments, this component enhances system performance and longevity.

Specification

StyleHydraulic Assembly
Outer Diameter 171.0 mm
Length 539.0 mm
Thread1 1/2 SAE 4 Bolt Code 61
Bypass Pressure 0.3 BAR bar
Donaldson Brand Logo

Donaldson Product

Genuine Donaldson P766495

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
Efficiency 2
Style Hydraulic Assembly
Outer Diameter 171.0 mm
Inner Diameter
Length 539.0 mm
Media Type
Flow Direction
Thread 1 1/2 SAE 4 Bolt Code 61
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

0.3 BAR
Collapse Pressure
Seal
Temperature Range
