Fleetguard HF7350 Replaces the Schroeder NZ3V

NZ3V
NZ3V
Representative product image Product image feedback

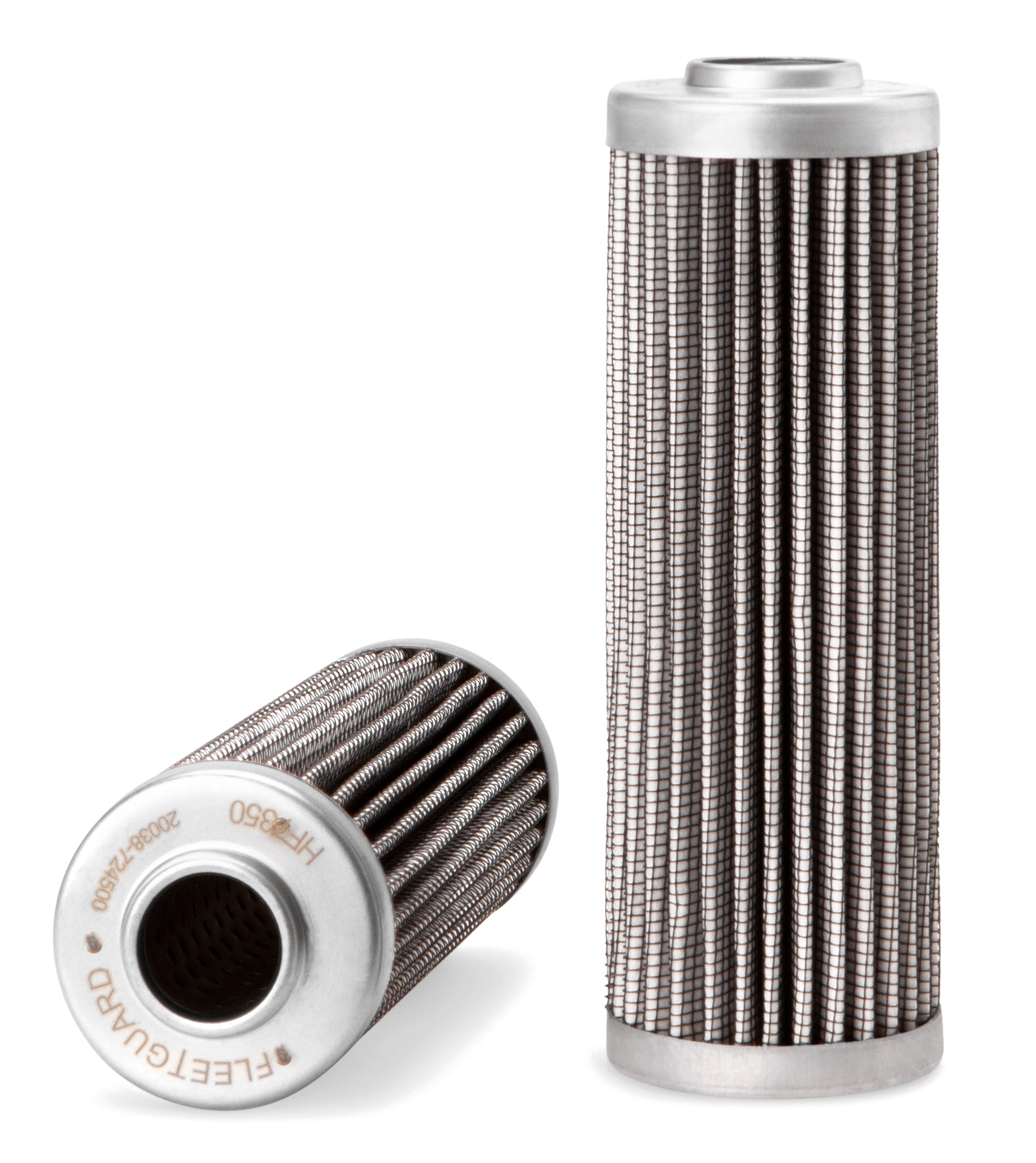

Fleetguard HF7350 Hydraulic Filters | Replaces the Schroeder NZ3V

Brand: Fleetguard
Description

Fleetguard® HF7350 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
$157.00
0.16 kg
0.0008 m³
12 pcs
1596 pcs
United States
8421.23.00
0.18 kg
0.0011 m³
1596 pcs
United States
8421.29.80.90
0.0003 m³
1596 pcs
Italy
8421.99.90
0.16 kg
0.0007 m³
1596 pcs
France
8421.99.90
1596 pcs
United States
8421.99.90
1596 pcs
United Kingdom
8421.99.90
Shipping Terms

Description

Fleetguard® HF7350 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specification

StyleSpecial Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 45.0 mm
Inner Diameter 19.5 mm
Length 133.0 mm
Seal MaterialNitrile
Temperature Range -30 - +100°C
Schroeder Brand Logo

Same Fit-Form & Function

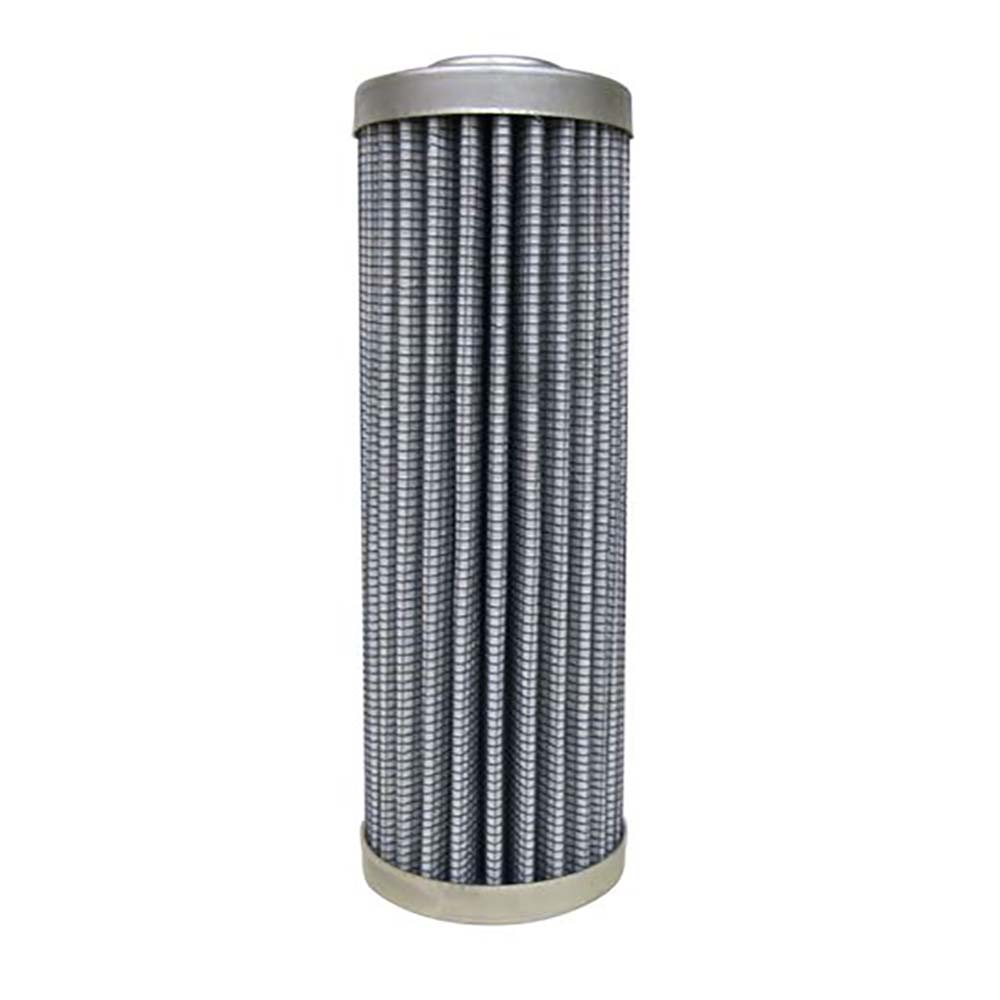

As the Genuine Schroeder NZ3V

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Special Filter
Outer Diameter 45.0 mm
Inner Diameter 19.5 mm
Length 133.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
