Fleetguard LF9540 Replacement Lube

Fleetguard LF9540
Fleetguard LF9540
Representative product image Product image feedback

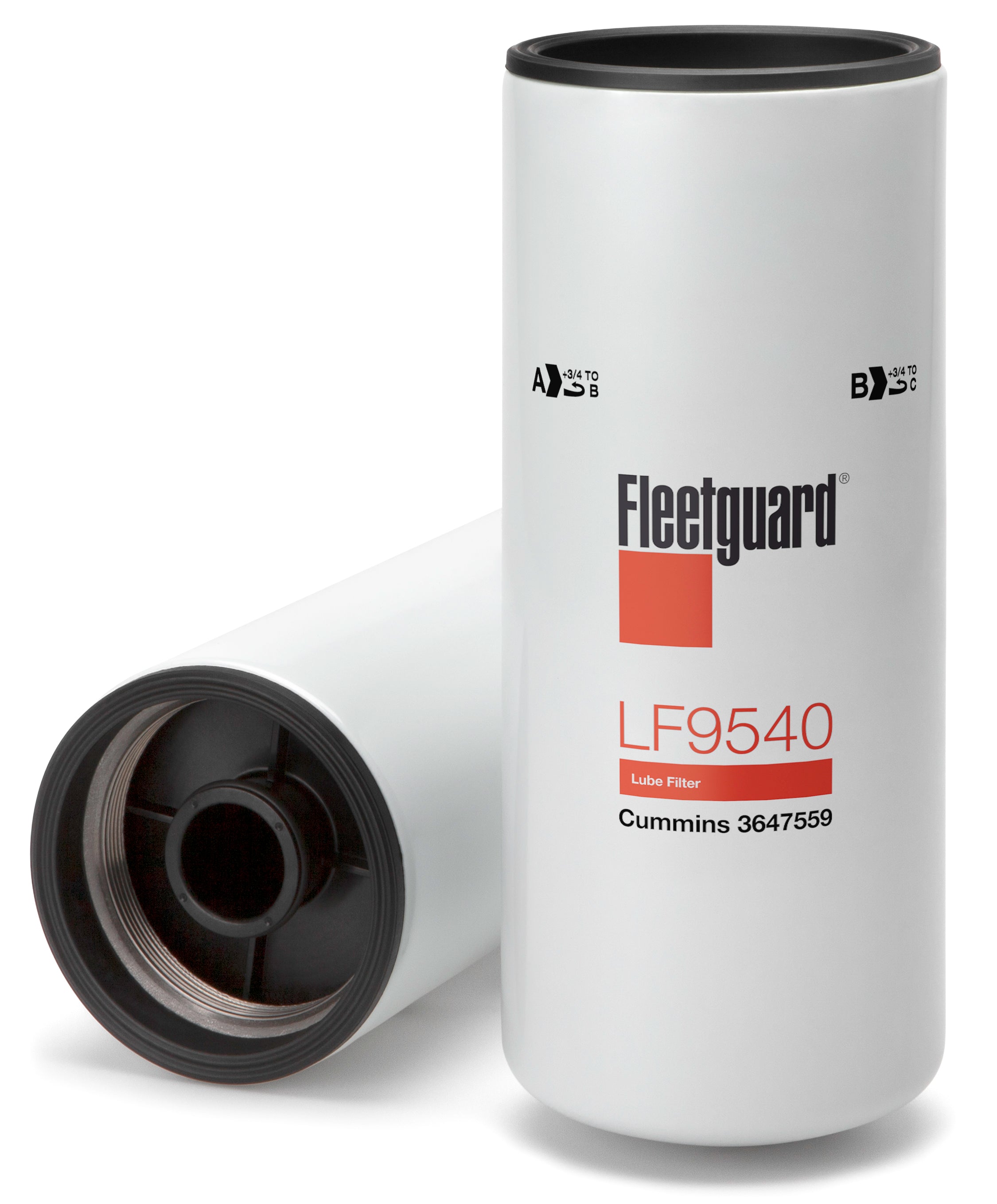

Fleetguard LF9540 Lube

Brand: Fleetguard
Description

Fleetguard® LF9540 lube combo spin-on filter combines full-flow and by-pass filtration into one single filter developed to meet or exceed engine requirements. This unique arrangement of filtration provides the perfect balance between efficiency and low restriction to oil flow.

Price Match
$80.00
2.39 kg
0.005 m³
Mexico
8421.23.00
2.34 kg
0.0044 m³
France
8421.99.90
Shipping Terms

Description

Fleetguard® LF9540 lube combo spin-on filter combines full-flow and by-pass filtration into one single filter developed to meet or exceed engine requirements. This unique arrangement of filtration provides the perfect balance between efficiency and low restriction to oil flow.

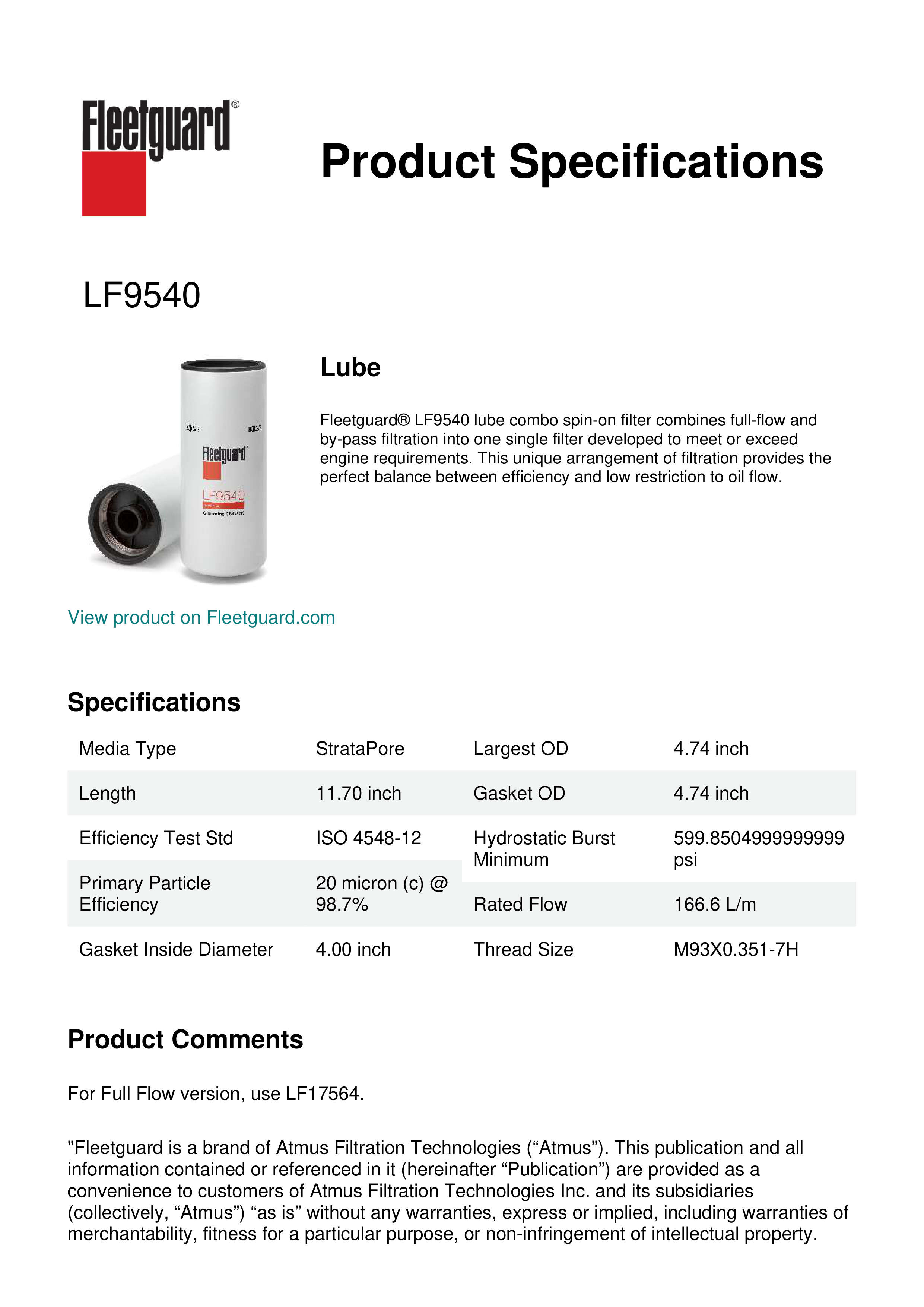

Specification

StyleLube
MediaStrataPore
Outer Diameter 120.3 mm
Inner Diameter 93.0 mm
Length 297.3 mm
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard LF9540

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
Efficiency 2
Style Lube
Outer Diameter 120.3 mm
Inner Diameter 93.0 mm
Length 297.3 mm
Media Type StrataPore
Flow Direction
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal
Temperature Range
