MicroFit MFHHP40773 Replaces the SF Filter HY14150

MICROFIT MFHHP40773
MICROFIT MFHHP40773
Representative product image Product image feedback

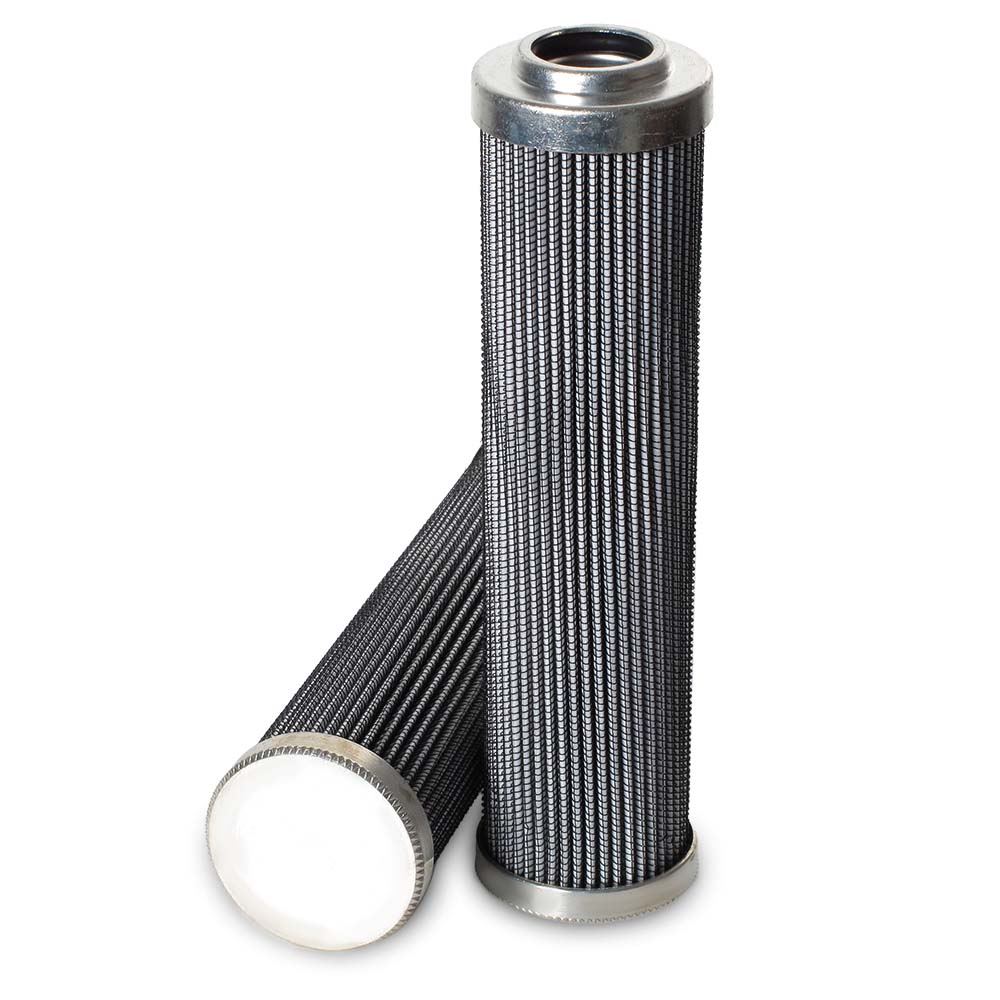

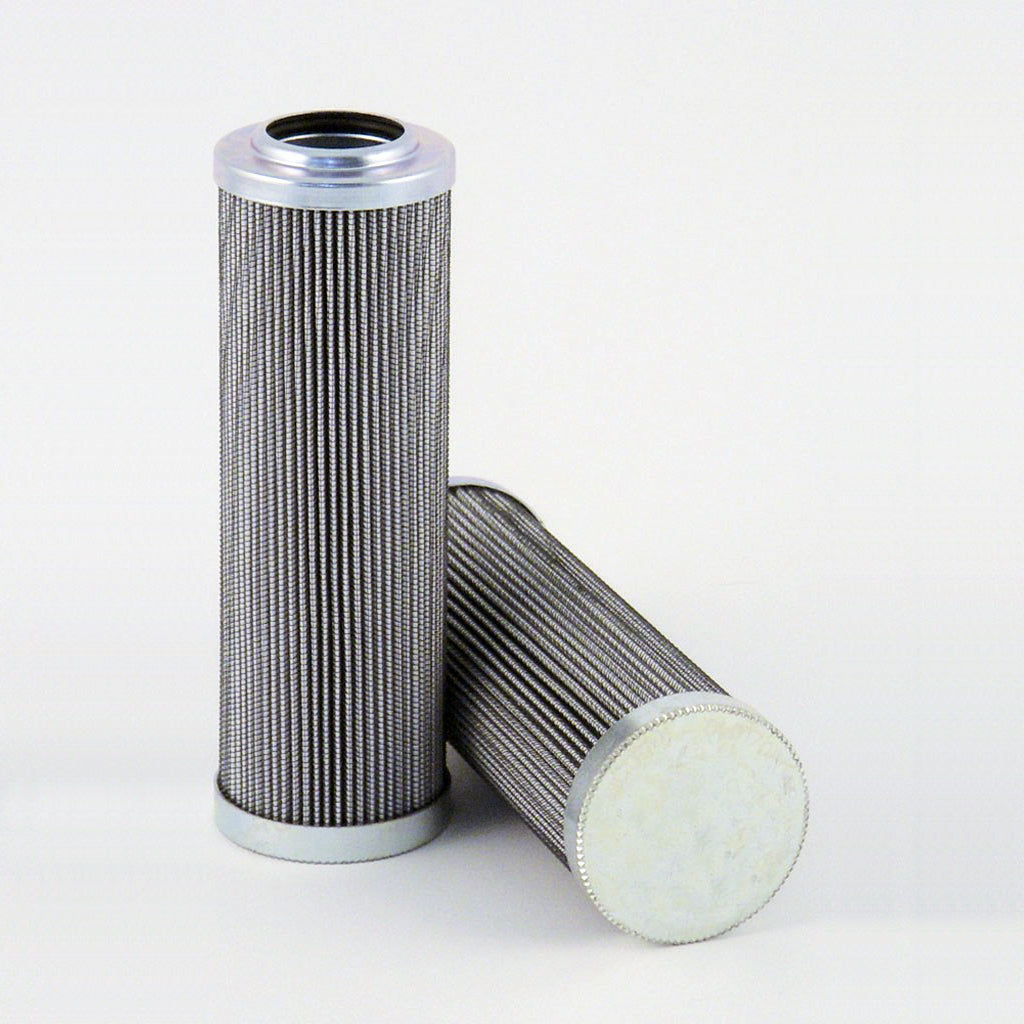

MicroFit® UltraGen III MFHHP40773 Pressure Filter | Replaces the SF Filter HY14150

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP40773 is the MICROFIT® approved replacement to the SF Filter HY14150. Engineered and manufactured in Great Britain the MFHHP40773

Price Match
$557.00
1.8 kg
United Kingdom
8421.99.90
0.82 kg
0.0008 m³
Italy
8421.99.90
0.74 kg
0.0015 m³
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40773 is the MICROFIT® approved replacement to the SF Filter HY14150. Engineered and manufactured in Great Britain the MFHHP40773

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 110µ
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 230.0 mm
Δ Collapse Pressure 210 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine SF Filter HY14150

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ
Efficiency 2
Style Pressure Filter
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 230.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 210 BAR
Seal Nitrile
Temperature Range -30 - +100°C
