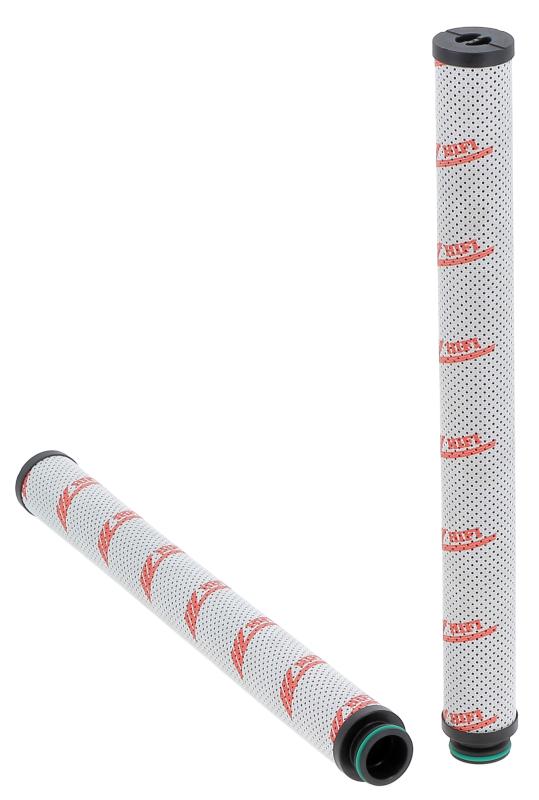

MicroFit® UltraGen III MFHSU70236 Suction Filter | Replaces the Hy-Pro HP219L203MV

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHSU70236 is the MICROFIT® approved replacement to the Hy-Pro HP219L203MV. Engineered and manufactured in Great Britain the MFHSU70236

Price Match
$257.00
0.44 kg
0.0016 m³
United Kingdom
8421.99.90
0.44 kg
0.0022 m³
France
8421.99.90
0.0016 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHSU70236 is the MICROFIT® approved replacement to the Hy-Pro HP219L203MV. Engineered and manufactured in Great Britain the MFHSU70236

Specification

StyleSuction Filter
MediaGlass Fiber (Anti-Static)
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 54.0 mm
Inner Diameter 42.5 mm
Length 536.0 mm
Seal MaterialViton
Temperature Range -25 - +120°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hy-Pro HP219L203MV

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Suction Filter
Outer Diameter 54.0 mm
Inner Diameter 42.5 mm
Length 536.0 mm
Media Type Glass Fiber (Anti-Static)
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Viton
Temperature Range -25 - +120°C
