Summary

MicroFit MFHR56788 Replaces the Ikron HHC01321

MICROFIT MFHR56788
MICROFIT MFHR56788
Representative product image Product image feedback

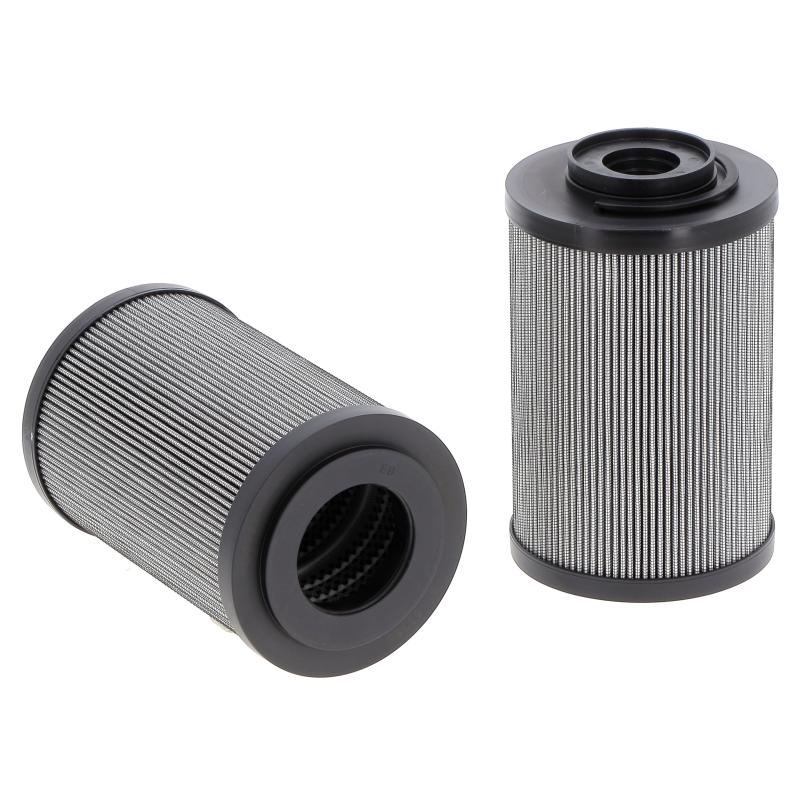

MicroFit® UltraGen III MFHR56788 Return Filter | Replaces the Ikron HHC01321

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR56788 is the MICROFIT® approved replacement to the Ikron HHC01321. Engineered and manufactured in Great Britain the MFHR56788

Price Match
$121.00
2.8 kg
0.0034 m³
United Kingdom
8421.99.90
1.28 kg
0.0035 m³
Italy
8421.99.90
1.2 kg
0.0047 m³
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR56788 is the MICROFIT® approved replacement to the Ikron HHC01321. Engineered and manufactured in Great Britain the MFHR56788

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 15µ
Efficiency 25µ @ β1000
Outer Diameter 130.0 mm
Inner Diameter 64.5 mm
Length 200.0 mm
Bypass Pressure 1.7 BAR bar
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Ikron HHC01321

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ
Efficiency 2 5µ @ β1000
Style Return Filter
Outer Diameter 130.0 mm
Inner Diameter 64.5 mm
Length 200.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
