Fleetguard HF6111 Replacement Pressure Filter

HF6111
HF6111
Representative product image Product image feedback

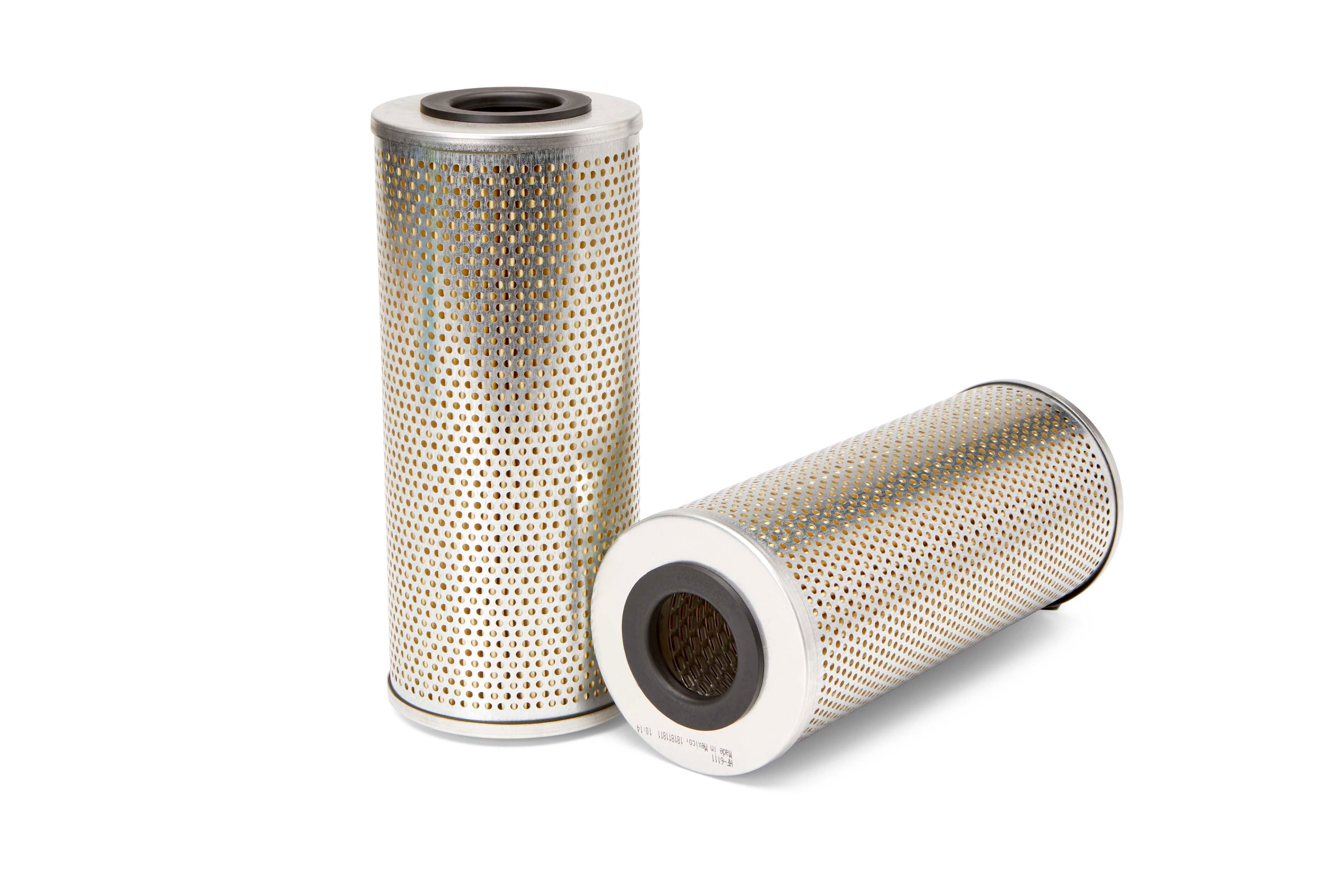

Fleetguard HF6111 Pressure Filter

Brand: Fleetguard
Description

Fleetguard® HF6111 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
$42.00
0.57 kg
0.0033 m³
440 pcs
United States
8421.99.90
0.54 kg
0.003 m³
440 pcs
Mexico
8421.29.80.90
0.58 kg
0.0035 m³
440 pcs
France
8421.99.90
440 pcs
United States
8421.99.90
1.61 kg
0.0023 m³
440 pcs
Italy
8421.99.90
Shipping Terms

Description

Fleetguard® HF6111 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specification

StylePressure Filter
MediaCellulose
Efficiency 125µ @ β2
Outer Diameter 99.0 mm
Inner Diameter 42.0 mm
Length 235.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard HF6111

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ @ β2
Efficiency 2
Style Pressure Filter
Outer Diameter 99.0 mm
Inner Diameter 42.0 mm
Length 235.0 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
