Mann Filter HD 11 005 Replaces the Mann Filter HD11005

HD11005
HD11005
OE Quality
Range
Range
Watch video
▶

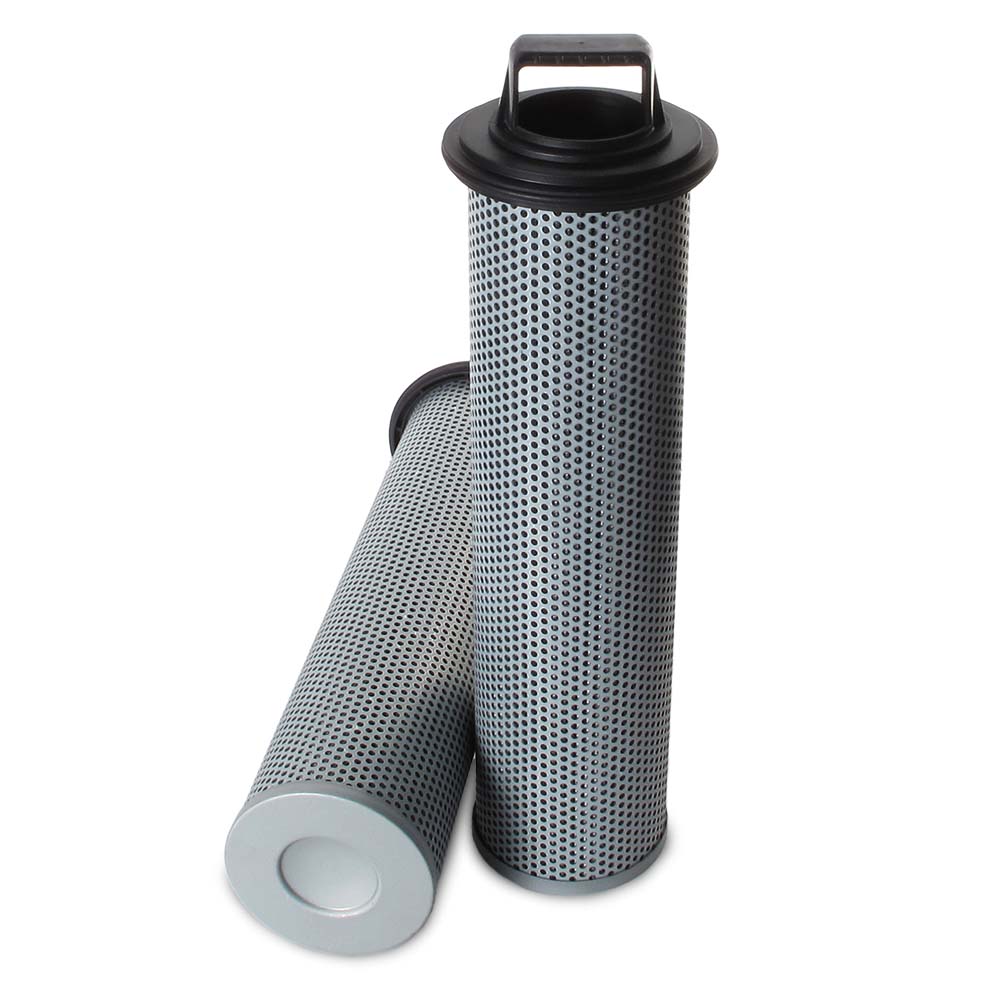

Representative product image Product image feedback

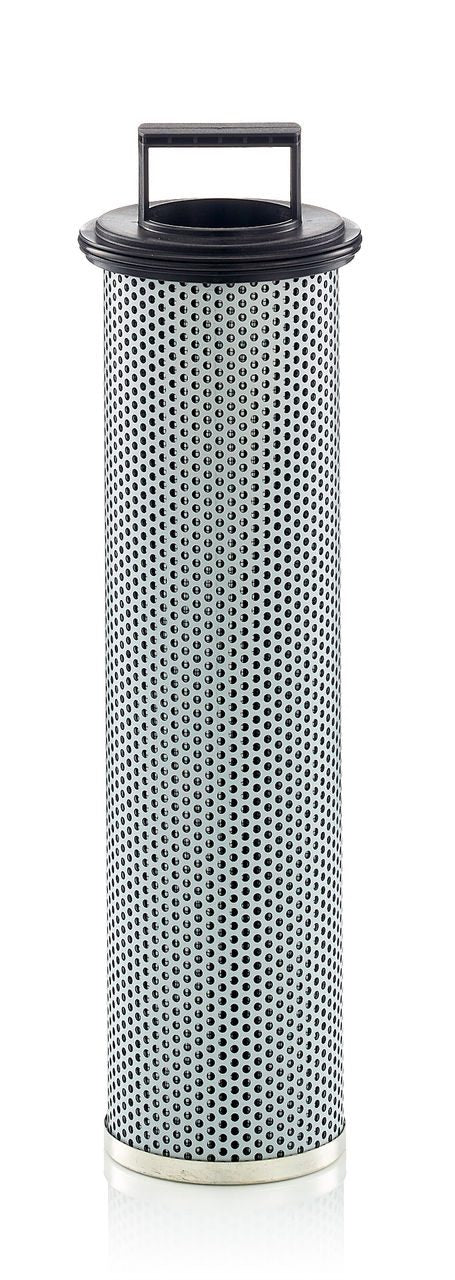

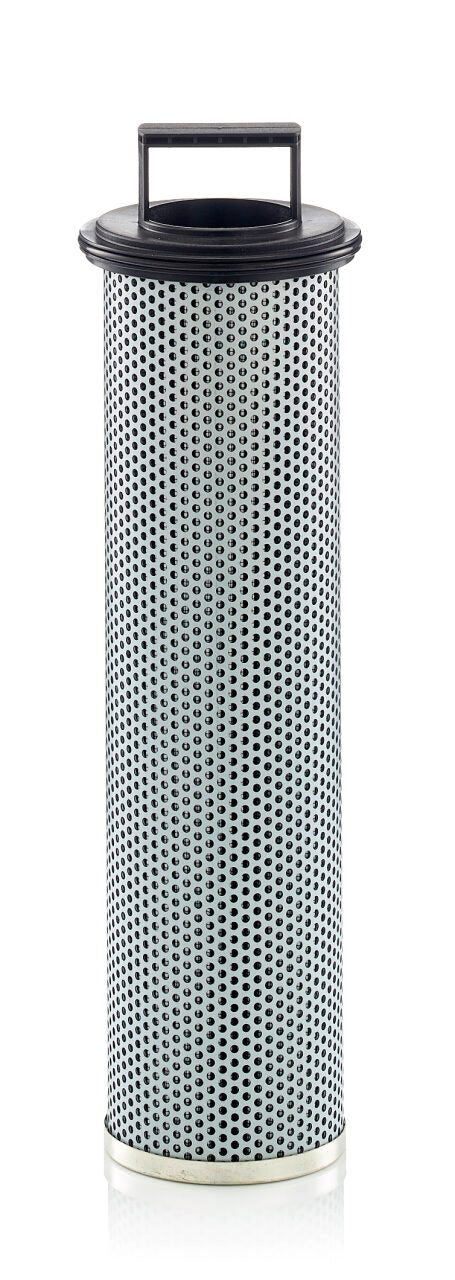

Mann Filter HD 11 005 Hydraulics

Brand: Mann Filter
Description

For over 70 years, MANN-FILTER has been synonymous with premium filters in original equipment quality worldwide. Benefit from a comprehensive product range and optimum filtration performance to protect drivers, engines and machinery. In the familiar yellow-green packaging, MANN-FILTER offers innovative solutions to new filtration challenges and produces on a global scale in accordance with the latest international production and test standards in the automotive industry.

Price Match
$115.00
54 pcs
Germany
8421.99.90
0.98 kg
0.0068 m³
54 pcs
France
8421.99.90
0.98 kg
0.0073 m³
54 pcs
Italy
8421.29.80.90
1.13 kg
0.0043 m³
54 pcs
Italy
8421.99.90
1.03 kg
0.0057 m³
54 pcs
Italy
8421.23.00
1.13 kg
54 pcs
United Kingdom
8421.99.90
Shipping Terms

Description

For over 70 years, MANN-FILTER has been synonymous with premium filters in original equipment quality worldwide. Benefit from a comprehensive product range and optimum filtration performance to protect drivers, engines and machinery. In the familiar yellow-green packaging, MANN-FILTER offers innovative solutions to new filtration challenges and produces on a global scale in accordance with the latest international production and test standards in the automotive industry.

Specification

StyleHydraulics

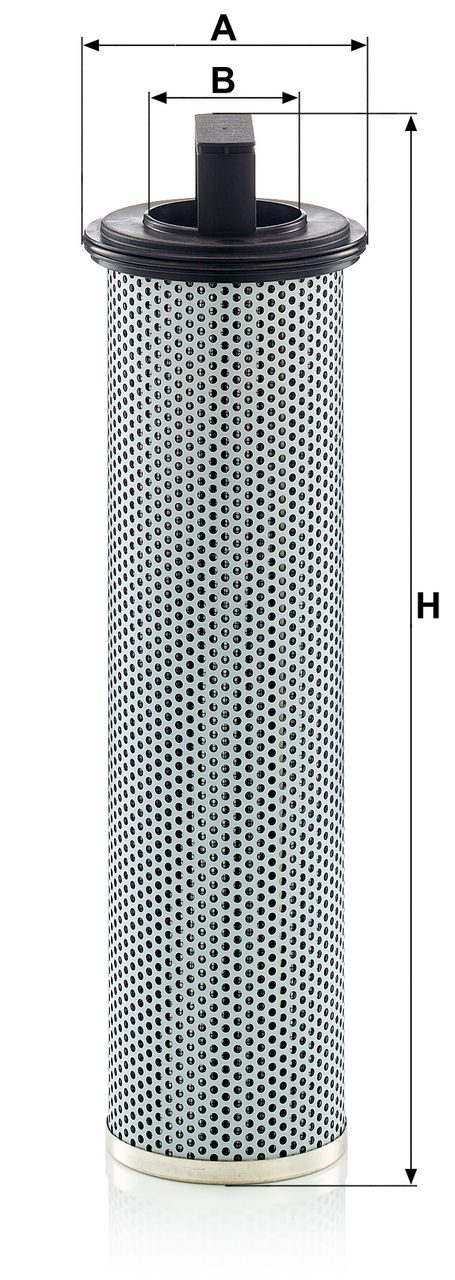

Dimension A 106.0 mm
Dimension H 380.0 mm
Mann Filter Brand Logo

Mann Filter Product

Genuine Mann Filter HD 11 005

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
15µ @ β200
Efficiency 2 17µ @ β1000
Style Special Filter
Outer Diameter 105.8 mm
Inner Diameter 90.0 mm
Length 380.0 mm
Media Type Glass Fiber
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 20 BAR
Seal Nitrile
Temperature Range -30 - +100°C
