MicroFit MFHLP30759 Replaces the Pall HC9606FUS8H

HC9606FUS8H
HC9606FUS8H

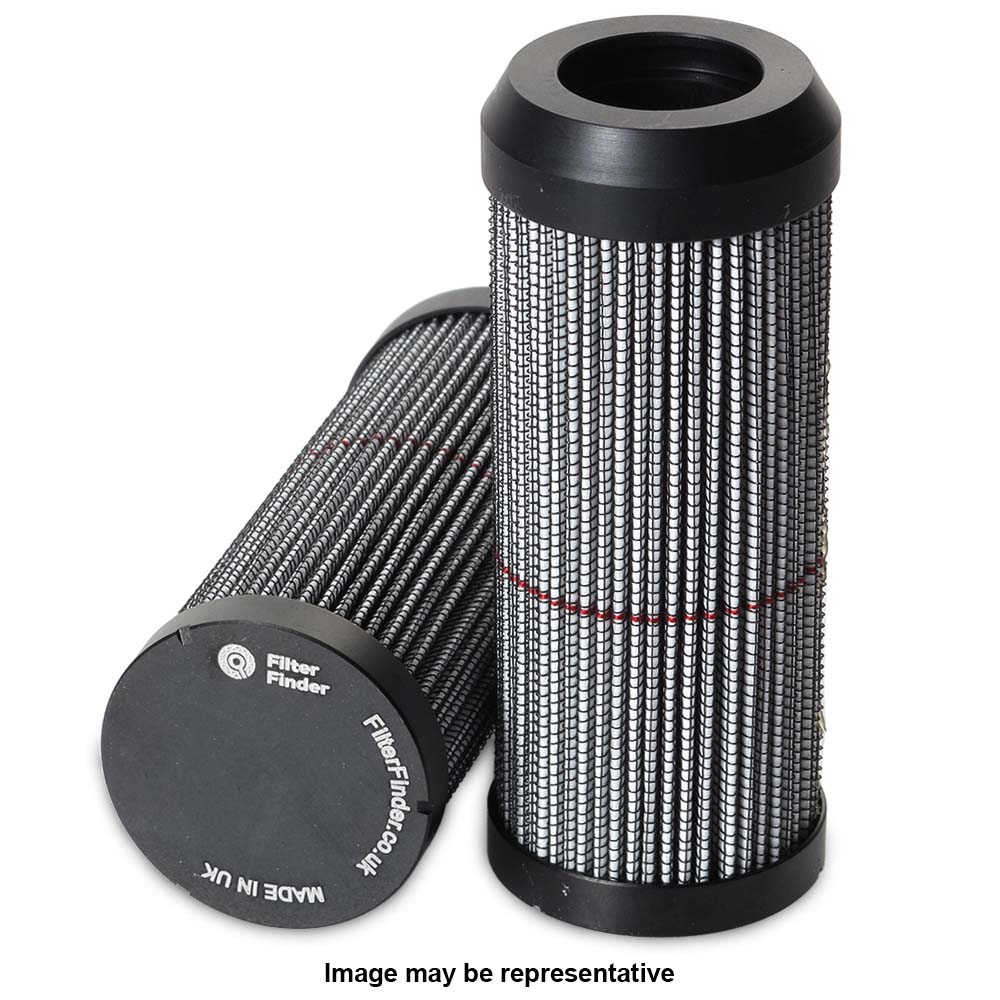

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP30759 Pressure Filter | Replaces the Pall HC9606FUS8H

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP30759 is the MICROFIT® approved replacement to the Pall HC9606FUS8H. Engineered and manufactured in Great Britain the MFHLP30759

Price Match
$137.00
1.28 kg
0.0013 m³
United Kingdom
8421.99.90
0.59 kg
0.0013 m³
Italy
8421.99.90
0.66 kg
0.0016 m³
France
8421.99.90
United States
8421.99.90
0.99 kg
0.0033 m³
Mexico
8421.23.00
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP30759 is the MICROFIT® approved replacement to the Pall HC9606FUS8H. Engineered and manufactured in Great Britain the MFHLP30759

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 78.0 mm
Inner Diameter 43.2 mm
Length 209.0 mm
Δ Collapse Pressure 40 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall HC9606FUS8H

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 78.0 mm
Inner Diameter 43.2 mm
Length 209.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 40 BAR
Seal Nitrile
Temperature Range -30 - +100°C
