Summary

MicroFit MFHLP31457 Replaces the Mahle H 1320 DN 6 NBR

MICROFIT MFHLP31457
MICROFIT MFHLP31457

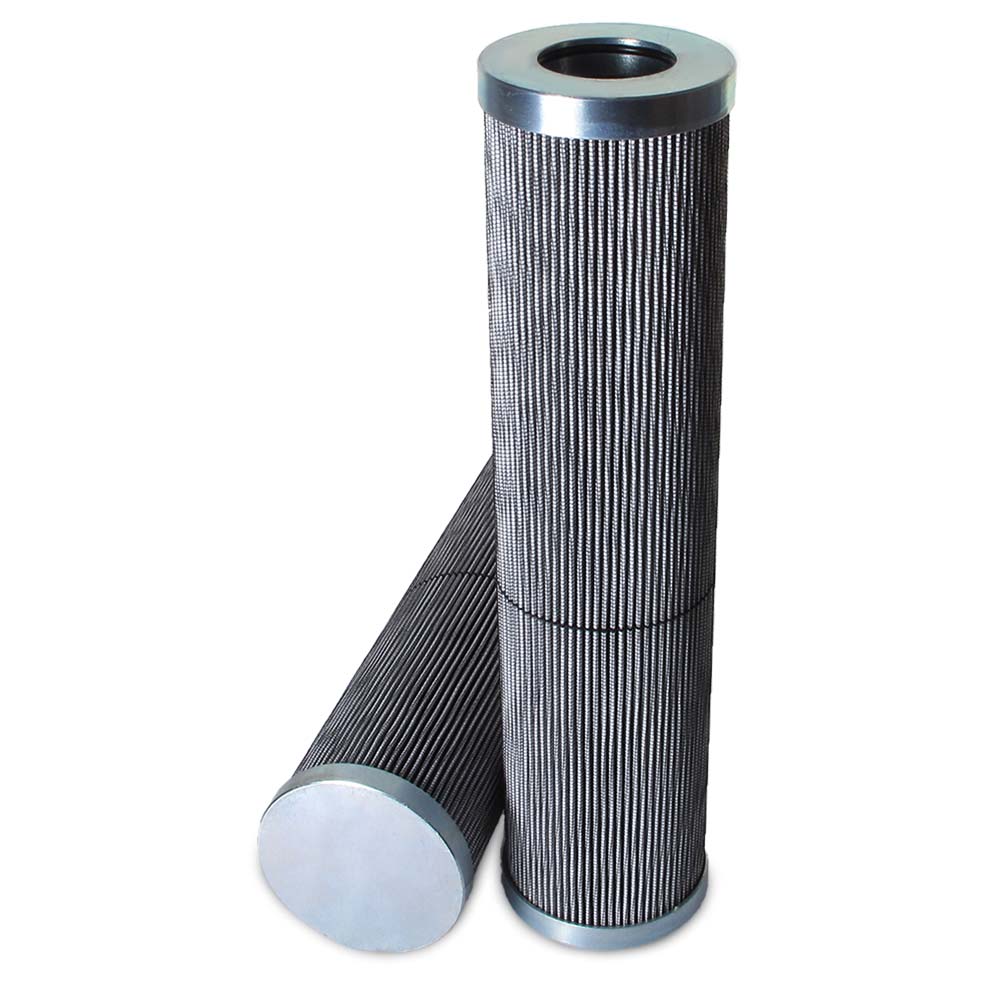

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP31457 Pressure Filter | Replaces the Mahle H 1320 DN 6 NBR

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31457 is the MICROFIT® approved replacement to the Mahle H 1320 DN 6 NBR. Engineered and manufactured in Great Britain the MFHLP31457

Price Match
$426.00
8.05 kg
0.0053 m³
United Kingdom
8421.99.90
2.26 kg
0.0081 m³
France
8421.99.90
3.66 kg
0.0053 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31457 is the MICROFIT® approved replacement to the Mahle H 1320 DN 6 NBR. Engineered and manufactured in Great Britain the MFHLP31457

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 90.5 mm
Inner Diameter 48.2 mm
Length 651.0 mm
Δ Collapse Pressure 20 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Mahle Brand Logo

Same Fit-Form & Function

As the Genuine Mahle H 1320 DN 6 NBR

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Pressure Filter
Outer Diameter 90.5 mm
Inner Diameter 48.2 mm
Length 651.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 20 BAR
Seal Nitrile
Temperature Range -30 - +100°C
