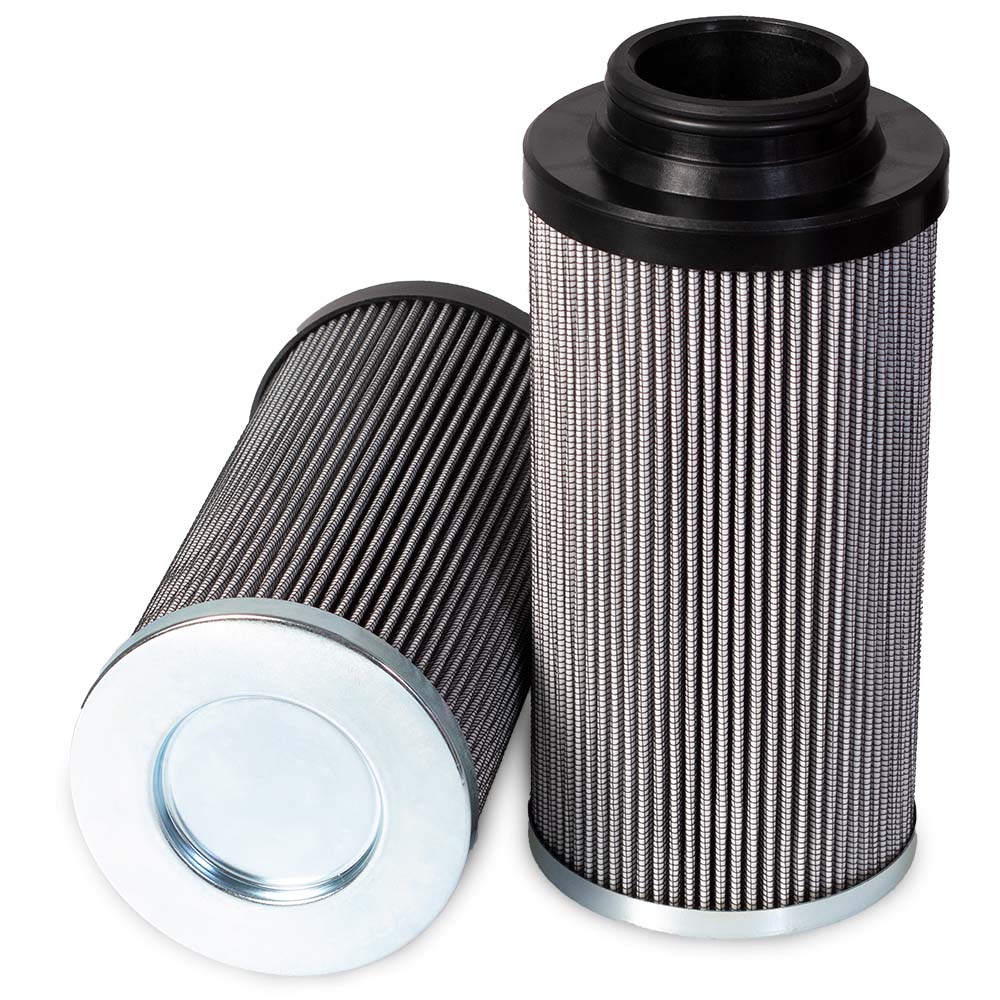

Parker G04322 Replacement Pressure Filter
Parker G04322 Pressure Filter
Parker

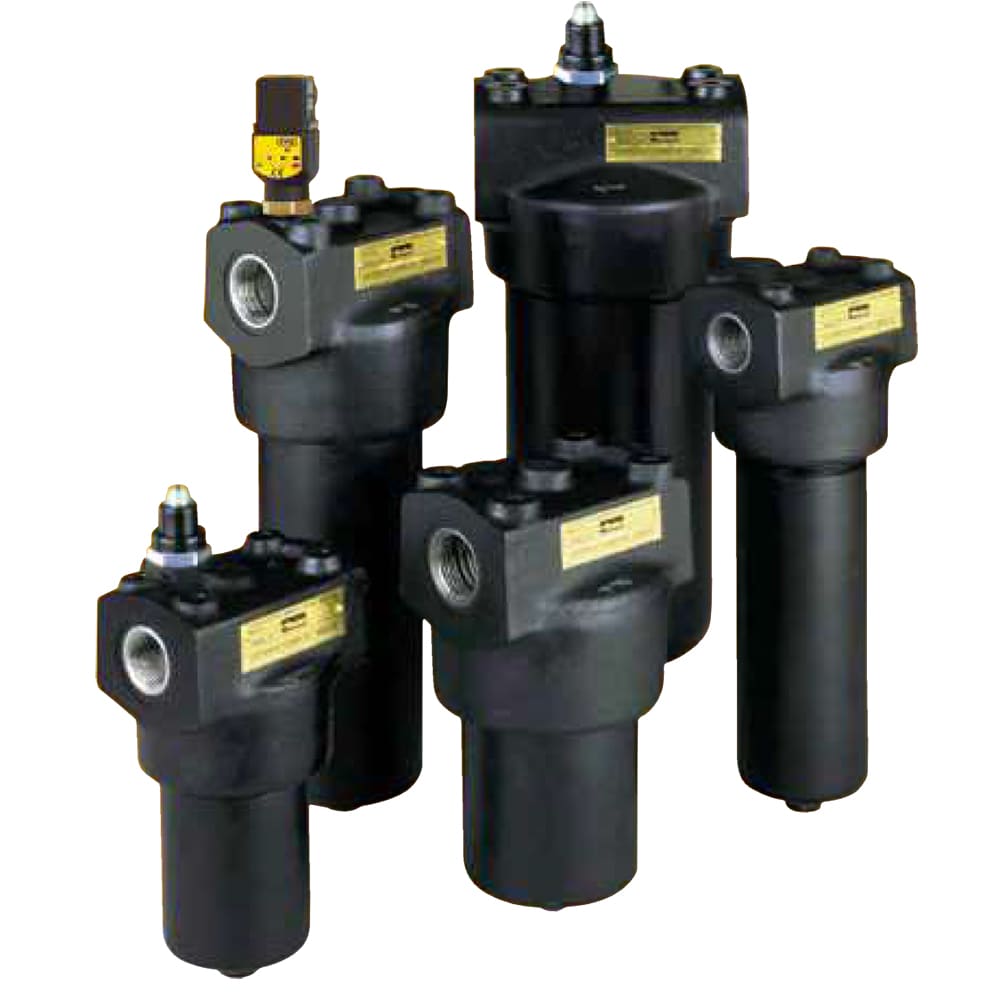

High Pressure In-Line Filter - 18/28/38P Series (G04322)
The 18/28/38P series of high pressure filters is designed to satisfy demanding applications in the global mobile and industrial markets. With metric mounting and optional ISO 6149 ports, this high pressure filter series is truly a global design. This filter series has a wide range of high capacity and low initial differential pressure elements, offering excellent protection to system components.
Standard filters come complete with an industry proven spool type bypass valve. For more critical applications such as servo or proportional controls, a no bypass, high strength element combination ensures maximum protection.
The low hysteresis differential pressure indicator fitted to this series is unrivalled in its performance.
Applications
• Mobile working hydraulics
• Mobile drive system
• Injection moulding
• Servo controls
• Die casting
• Machine tools
Description
High Pressure In-Line Filter - 18/28/38P Series (G04322)The 18/28/38P series of high pressure filters is designed to satisfy demanding applications in the global mobile and industrial markets. With metric mounting and optional ISO 6149 ports, this high pressure filter series is truly a global design. This filter series has a wide range of high capacity and low initial differential pressure elements, offering excellent protection to system components.
Standard filters come complete with an industry proven spool type bypass valve. For more critical applications such as servo or proportional controls, a no bypass, high strength element combination ensures maximum protection.
The low hysteresis differential pressure indicator fitted to this series is unrivalled in its performance.
Applications
• Mobile working hydraulics
• Mobile drive system
• Injection moulding
• Servo controls
• Die casting
• Machine tools
Specification
| Style | Pressure Filter |
| Media | Glass Fiber |
| Efficiency 1 | 3µ @ β200 |
| Efficiency 2 | 5µ @ β1000 |
| Outer Diameter | 95.0 mm |
| Inner Diameter | 58.0 mm |
| Length | 201.0 mm |
| Δ Collapse Pressure | 210 bar |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
Parker Product
Genuine Parker G04322
Inspected to ISO 9001:2015
