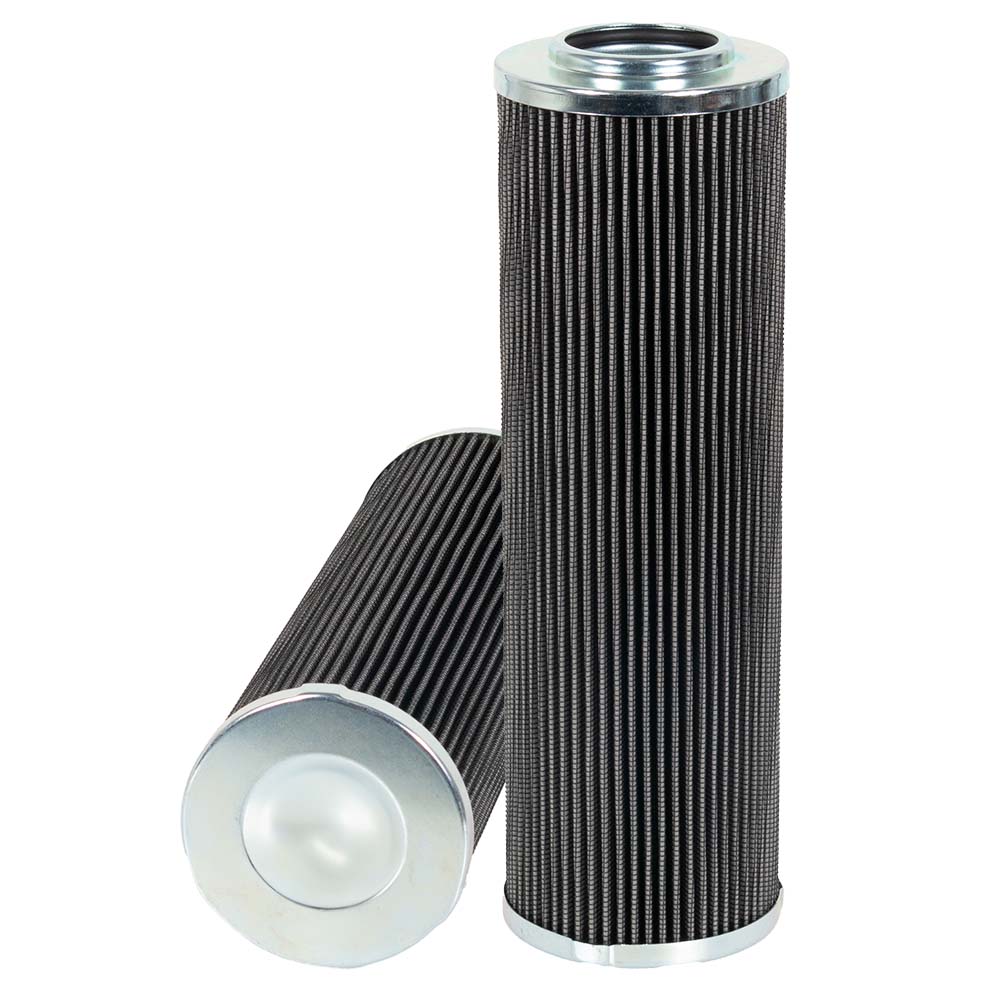

MicroFit MFHLP31168 Replaces the FilterFinder FF203717B

FF203717B
FF203717B
Verified product image Product image feedback

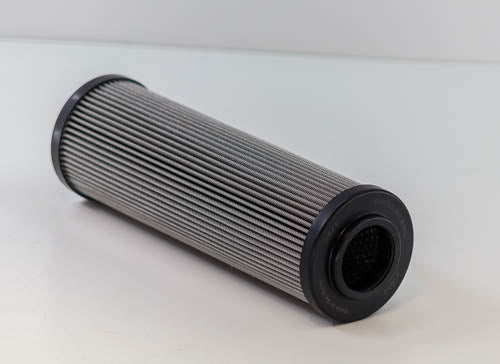

MicroFit® UltraGen III MFHLP31168 DIN Pressure Filter | Replaces the FilterFinder FF203717B

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31168 is the MICROFIT® approved replacement to the FilterFinder FF203717B. Engineered and manufactured in Great Britain the MFHLP31168 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MICROFIT® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MICROFIT® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

Price Match
$274.00
1.54 kg
0.0015 m³
United Kingdom
8421.99.90
0.7 kg
0.0015 m³
Italy
8421.99.90
Germany
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31168 is the MICROFIT® approved replacement to the FilterFinder FF203717B. Engineered and manufactured in Great Britain the MFHLP31168 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MICROFIT® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MICROFIT® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

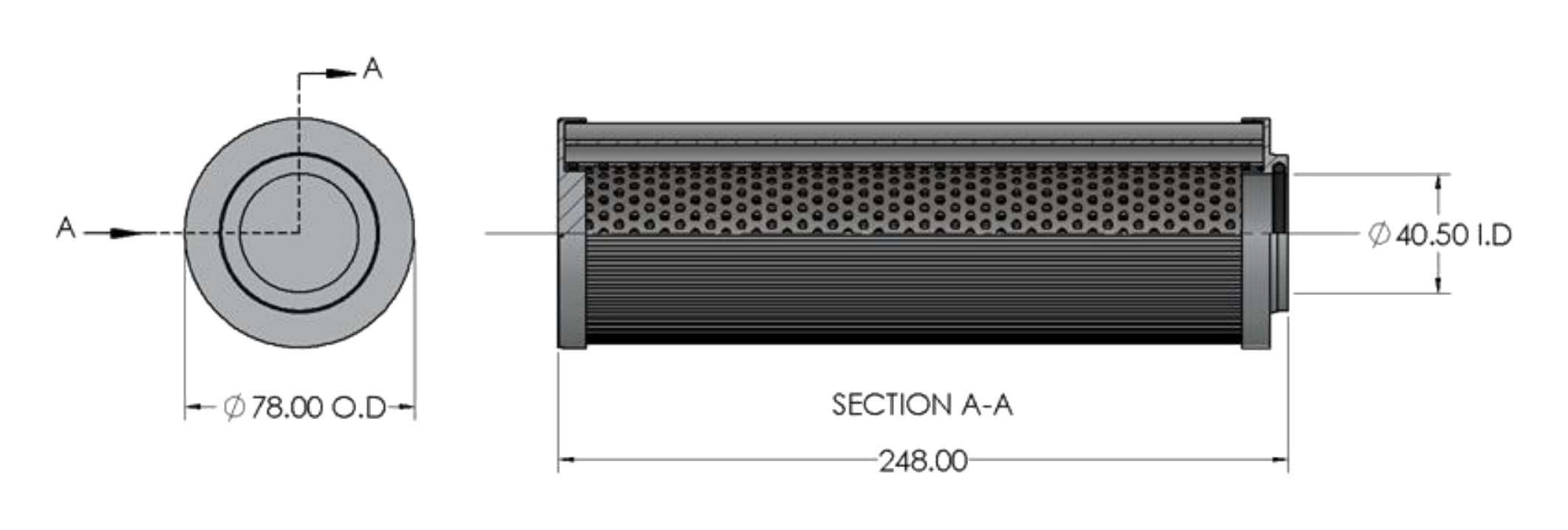

Specification

StyleDIN Pressure Filter
MediaWire Mesh
Efficiency 140µ
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 248.0 mm
Δ Collapse Pressure 21 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
FilterFinder Brand Logo

Same Fit-Form & Function

As the Genuine FilterFinder FF203717B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
40µ
Efficiency 2
Style DIN Pressure Filter
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 248.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Nitrile
Temperature Range -30 - +100°C
