Summary

MicroFit MFHR56114 Replaces the Parker FC1092Q010BS

MICROFIT MFHR56114
MICROFIT MFHR56114
Representative product image Product image feedback

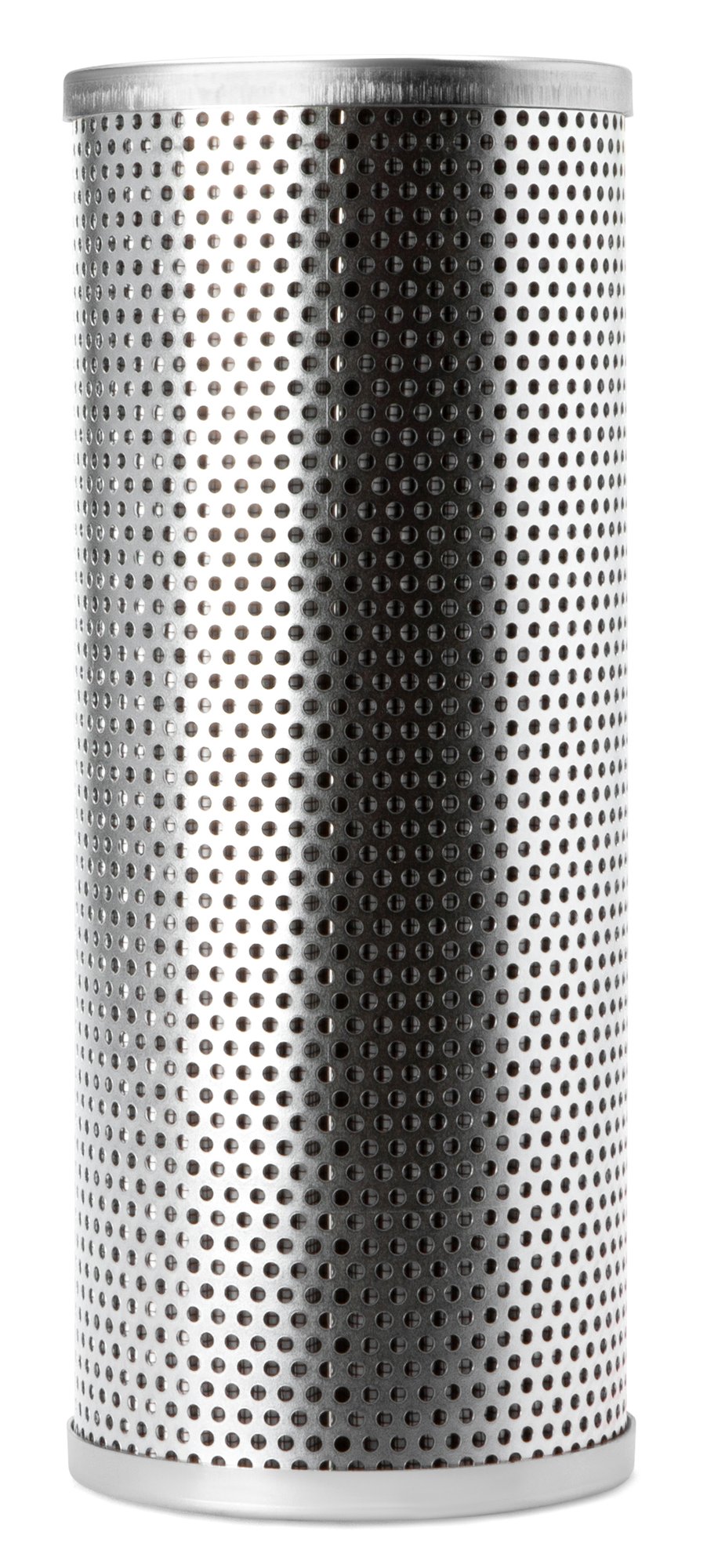

MicroFit® UltraGen III MFHR56114 Return Filter | Replaces the Parker FC1092Q010BS

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR56114 is the MICROFIT® approved replacement to the Parker FC1092Q010BS. Engineered and manufactured in Great Britain the MFHR56114

Price Match
$113.00
2.43 kg
0.0029 m³
120 pcs
United Kingdom
8421.99.90
0.88 kg
0.0057 m³
120 pcs
Italy
8421.29.80.90
1.11 kg
0.0029 m³
120 pcs
Italy
8421.99.90
1.03 kg
0.0038 m³
120 pcs
Italy
8421.23.00
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR56114 is the MICROFIT® approved replacement to the Parker FC1092Q010BS. Engineered and manufactured in Great Britain the MFHR56114

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 106.0 mm
Inner Diameter 72.0 mm
Length 260.0 mm
Seal MaterialNitrile
Temperature Range -30 - +100°C
Parker Brand Logo

Same Fit-Form & Function

As the Genuine Parker FC1092Q010BS

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Return Filter
Outer Diameter 106.0 mm
Inner Diameter 72.0 mm
Length 260.0 mm
Media Type Glass Fiber
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
