Mann Filter HD 4004 Replaces the UFI Filter EPA12NFD

EPA12NFD
EPA12NFD
OE Quality
Range
Range
Watch video
▶
Representative product image Product image feedback

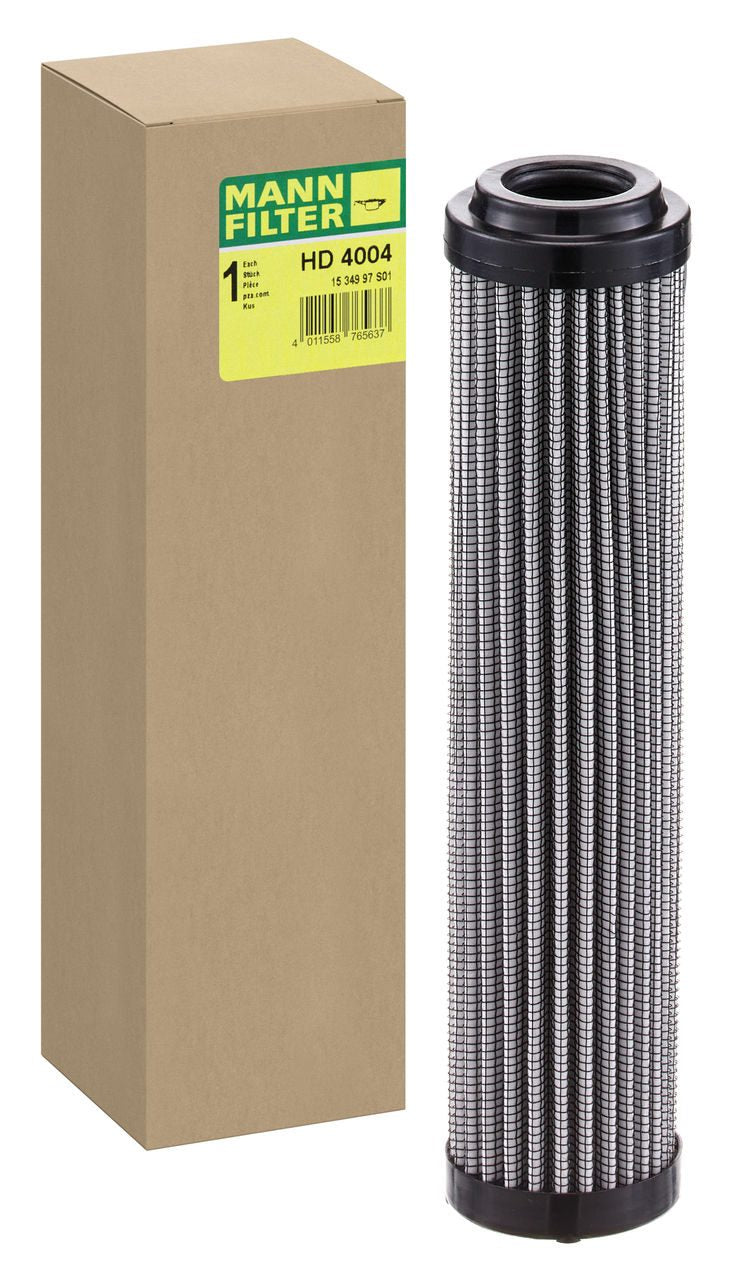

Mann Filter HD 4004 Hydraulics | Replaces the UFI Filter EPA12NFD

Brand: Mann Filter
Description

MANN-FILTER hydraulic filter elements for high-pressure filters offer maximum filtration performance and ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

Price Match
$45.00
1040 pcs
8421.99.90
0.24 kg
0.0006 m³
1040 pcs
Italy
8421.29.80.90
0.2 kg
0.0003 m³
1040 pcs
Italy
8421.99.90
0.25 kg
0.0007 m³
1040 pcs
France
8421.99.90
0.2 kg
1040 pcs
United Kingdom
8421.99.90
Shipping Terms

Description

MANN-FILTER hydraulic filter elements for high-pressure filters offer maximum filtration performance and ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

Specification

StyleHydraulics
Dimension A 44.0 mm
Dimension B 21.0 mm
Dimension H 179.0 mm
Default Brand Logo

Same Fit-Form & Function

As the Genuine UFI Filter EPA12NFD

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Pressure Filter
Outer Diameter 42.0 mm
Inner Diameter 22.8 mm
Length 179.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Nitrile
Temperature Range -30 - +100°C
