Schroeder BBZ3 Replaces the Schroeder BBS1

Schroeder BBS1
Schroeder BBS1
Representative product image Product image feedback

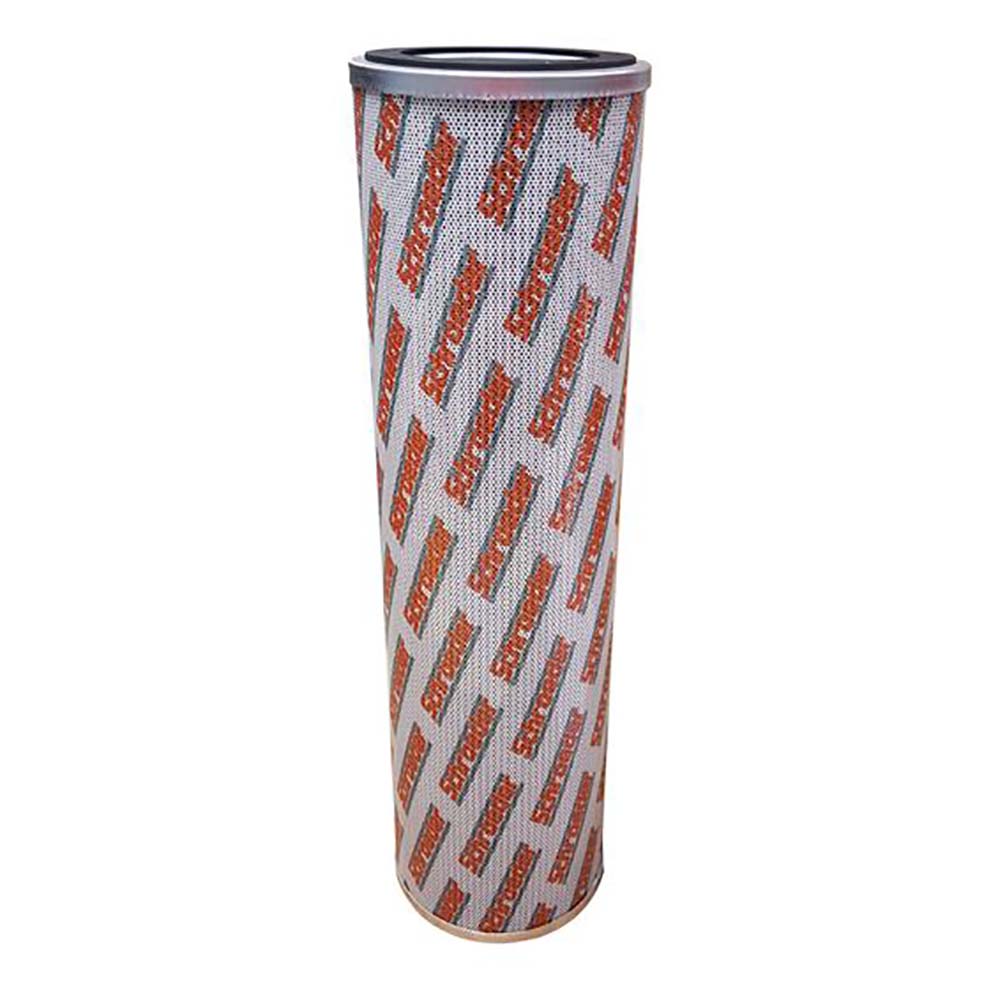

Schroeder BBZ3 Special Filter | Replaces the Schroeder BBS1

Brand: Schroeder
Description

Original Schroeder BBS1 Replacement Hydraulic Filter

Price Match
$551.00
United States
8421.99.90
3.51 kg
0.0074 m³
Italy
8421.99.90
3.51 kg
United Kingdom
8421.99.90
Shipping Terms

Description

Original Schroeder BBS1 Replacement Hydraulic Filter

Specification

StyleSpecial Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 126.0 mm
Inner Diameter 84.0 mm
Length 465.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialSughero
Temperature Range -30 - +100°C
Schroeder Brand Logo

Schroeder Product

Genuine Schroeder BBZ3

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Special Filter
Outer Diameter 126.0 mm
Inner Diameter 84.0 mm
Length 465.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Sughero
Temperature Range -30 - +100°C
