Donaldson P171504 Replaces the Parker 943706Q

Donaldson P171504
Donaldson P171504
Watch video
▶
Representative product image Product image feedback

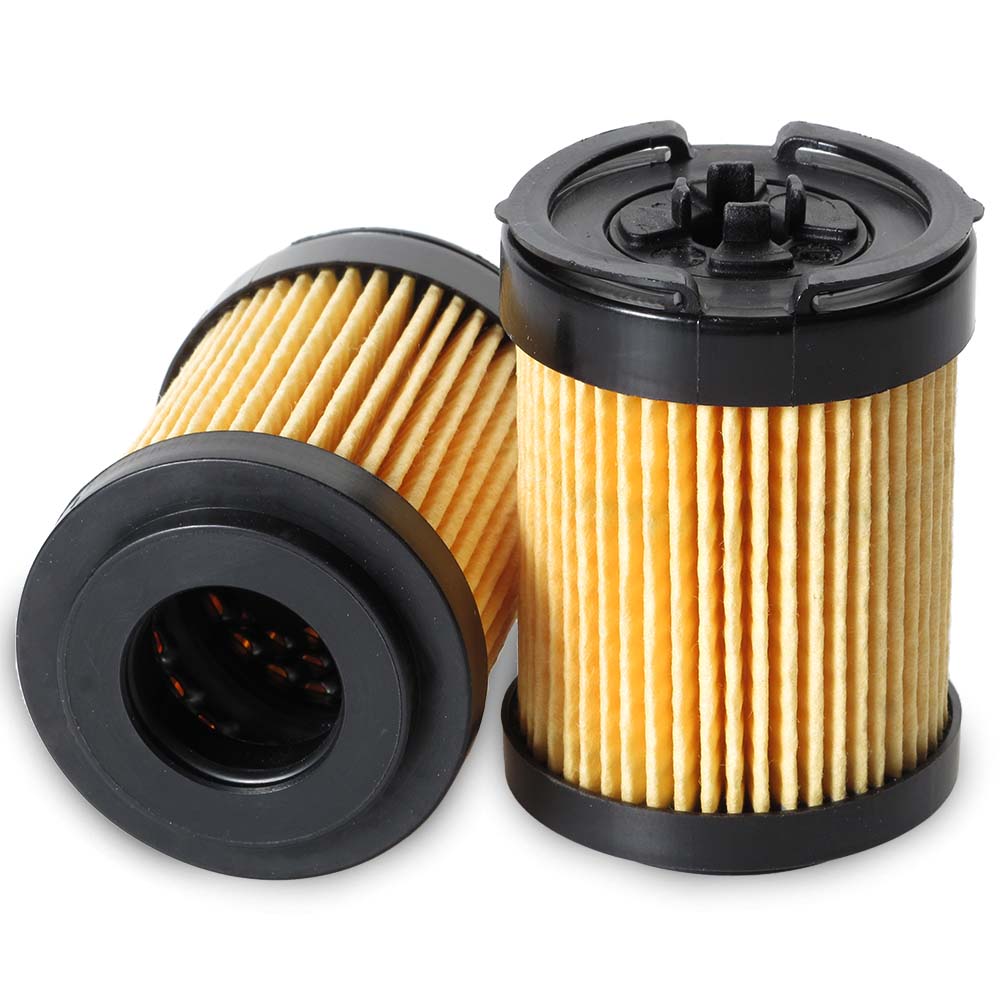

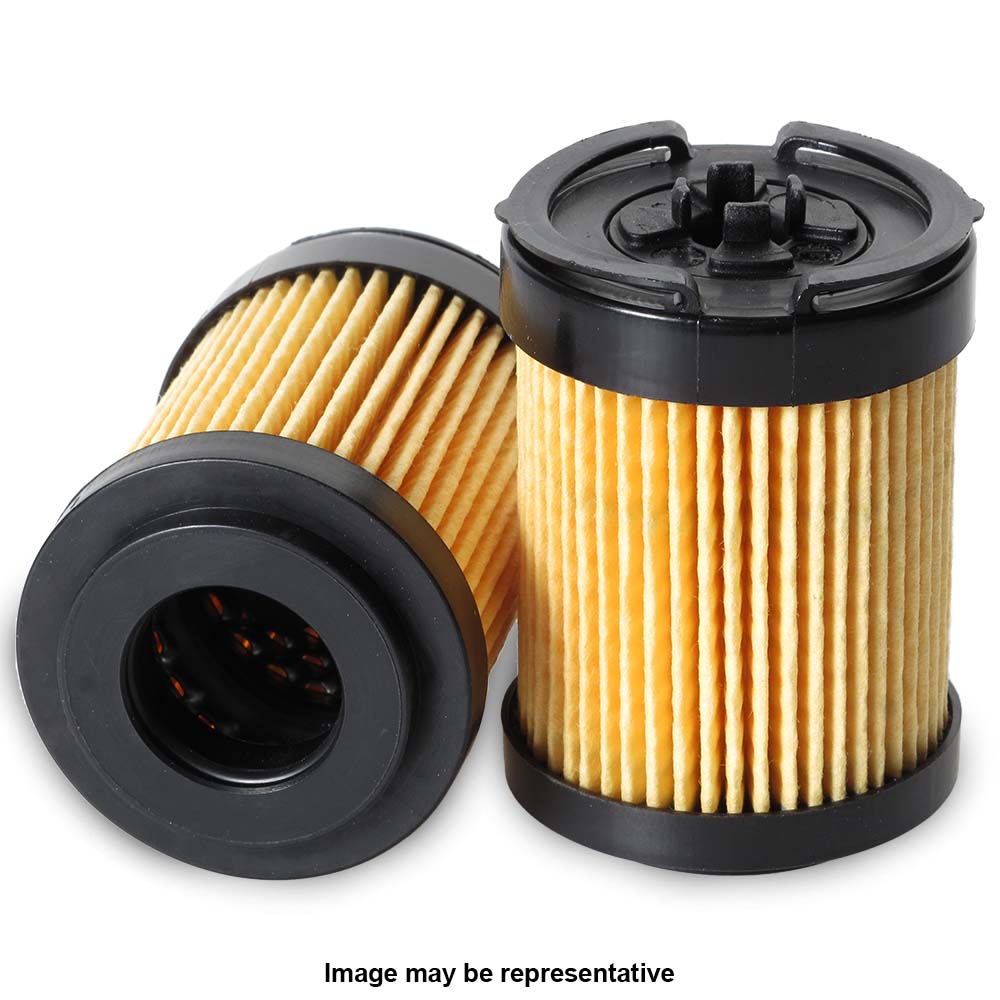

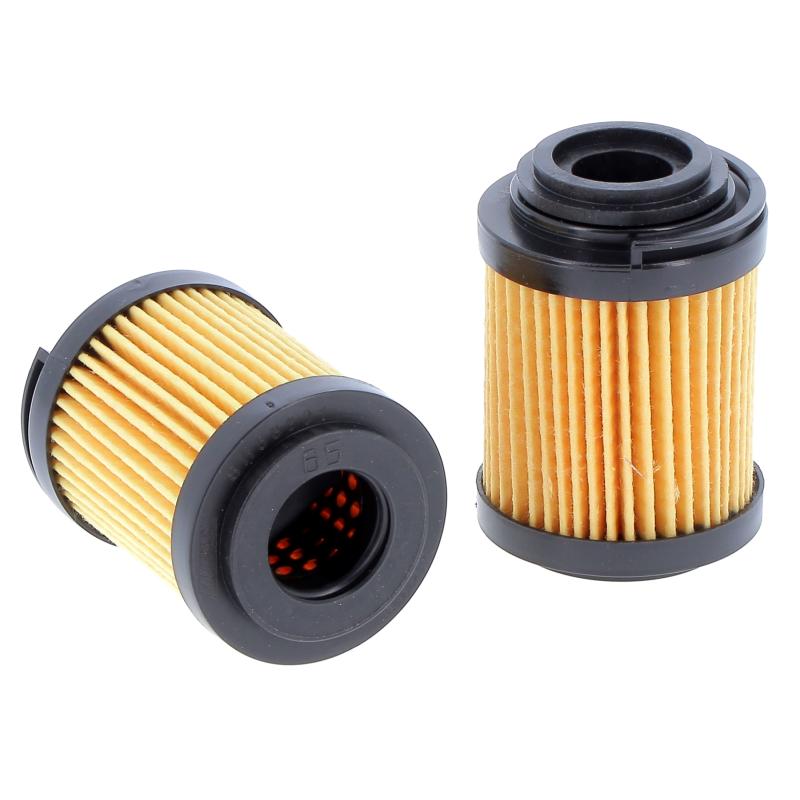

Donaldson P171504 Hydraulic Filter, Cartridge | Replaces the Parker 943706Q

Brand: Donaldson
Description

Genuine Donaldson P171504 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Price Match
$16.00
0.13 kg
0.0004 m³
2080 pcs
Italy
8421.29.80.90
0.11 kg
0.0002 m³
2080 pcs
Italy
8421.99.90
0.09 kg
0.0003 m³
2080 pcs
France
8421.99.90
Shipping Terms

Description

Genuine Donaldson P171504 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Specification

StyleReturn Filter
MediaCellulose
Efficiency 125µ @ β2
Outer Diameter 52.0 mm
Inner Diameter 24.5 mm
Length 75.0 mm
Bypass Pressure 1.7 BAR bar
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Parker Brand Logo

Same Fit-Form & Function

As the Genuine Parker 943706Q

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ @ β2
Efficiency 2
Style Return Filter
Outer Diameter 52.0 mm
Inner Diameter 24.5 mm
Length 75.0 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
