Summary

MicroFit MFHR51767 Replaces the Parker 938262Q

938262Q
938262Q
Representative product image Product image feedback

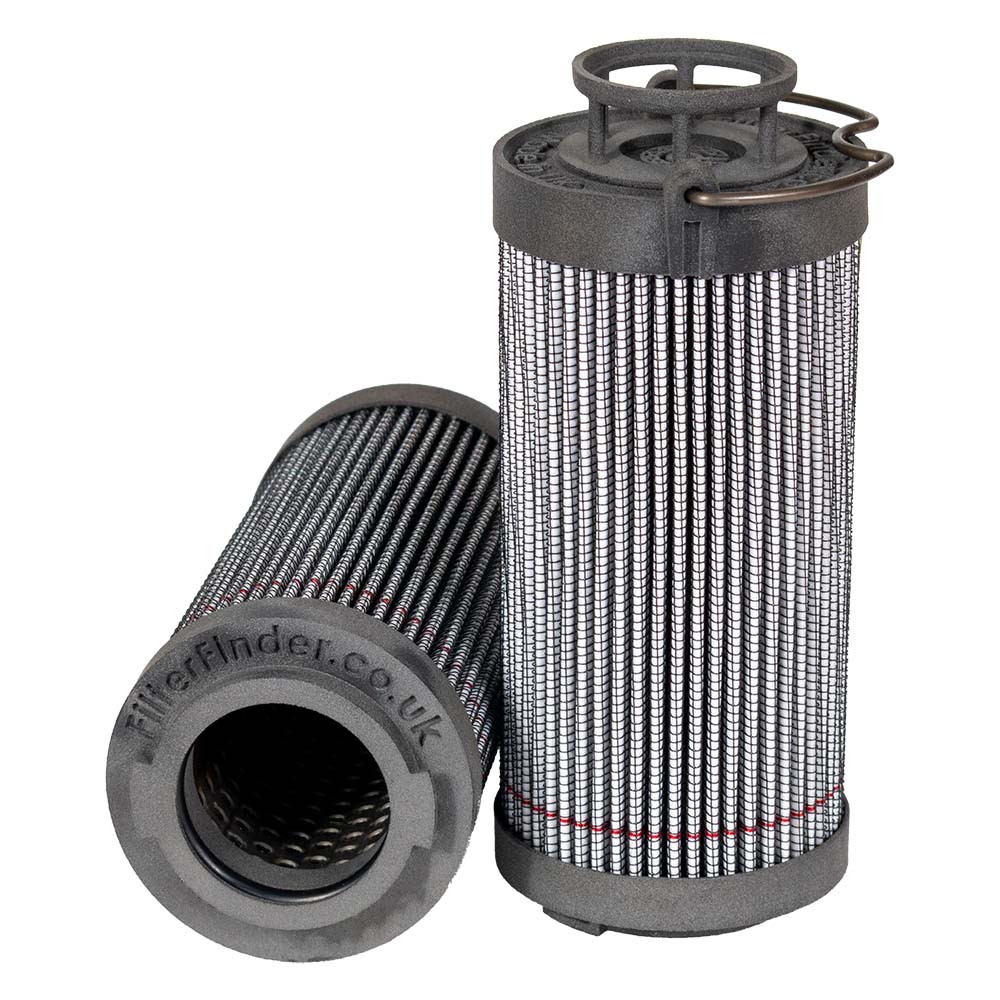

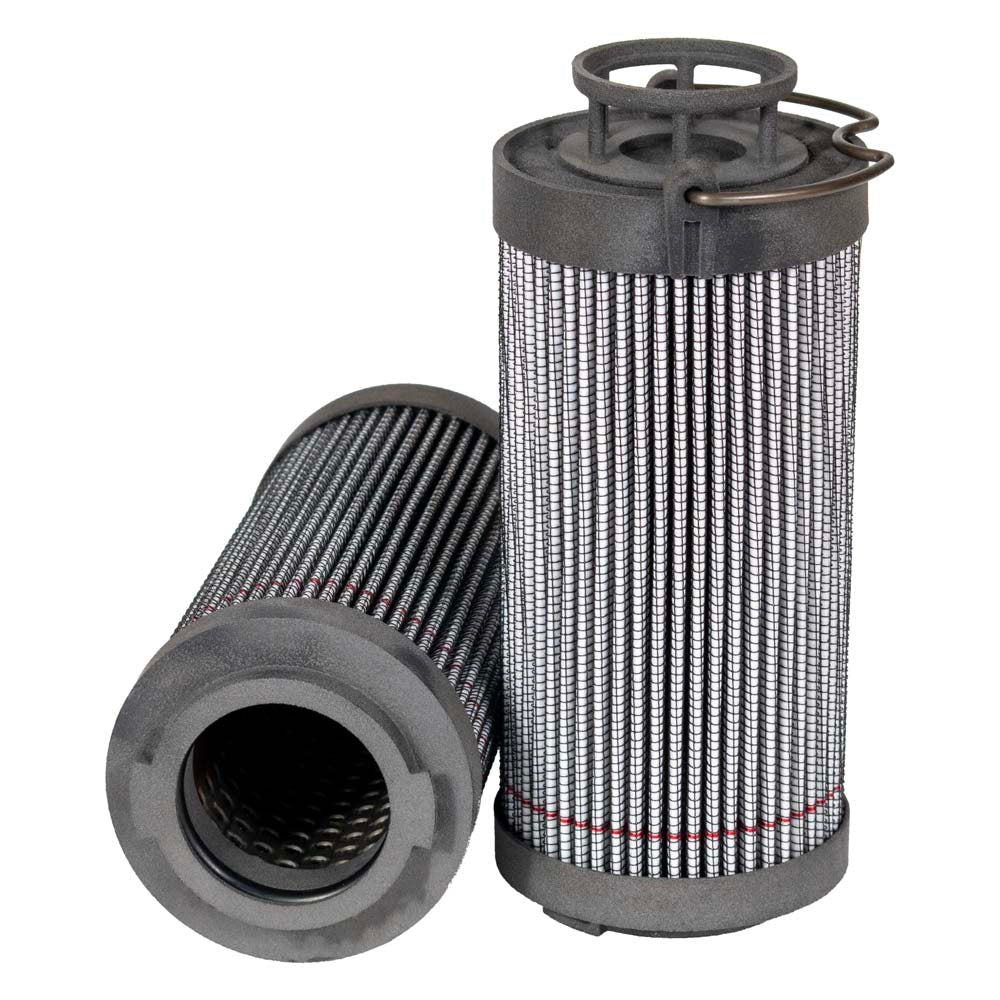

MicroFit® UltraGen III MFHR51767 Return Filter | Replaces the Parker 938262Q

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR51767 is the MICROFIT® approved replacement to the Parker 938262Q. Engineered and manufactured in Great Britain the MFHR51767

Price Match
$104.00
0.55 kg
0.0005 m³
United Kingdom
8421.99.90
0.26 kg
0.0005 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR51767 is the MICROFIT® approved replacement to the Parker 938262Q. Engineered and manufactured in Great Britain the MFHR51767

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 144.0 mm
Bypass Pressure 3.0 BAR bar
Δ Collapse Pressure 20 bar
Seal MaterialViton
Temperature Range -25 - +100°C
Parker Brand Logo

Same Fit-Form & Function

As the Genuine Parker 938262Q

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Return Filter
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 144.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

3.0 BAR
Collapse Pressure 20 BAR
Seal Viton
Temperature Range -25 - +100°C
