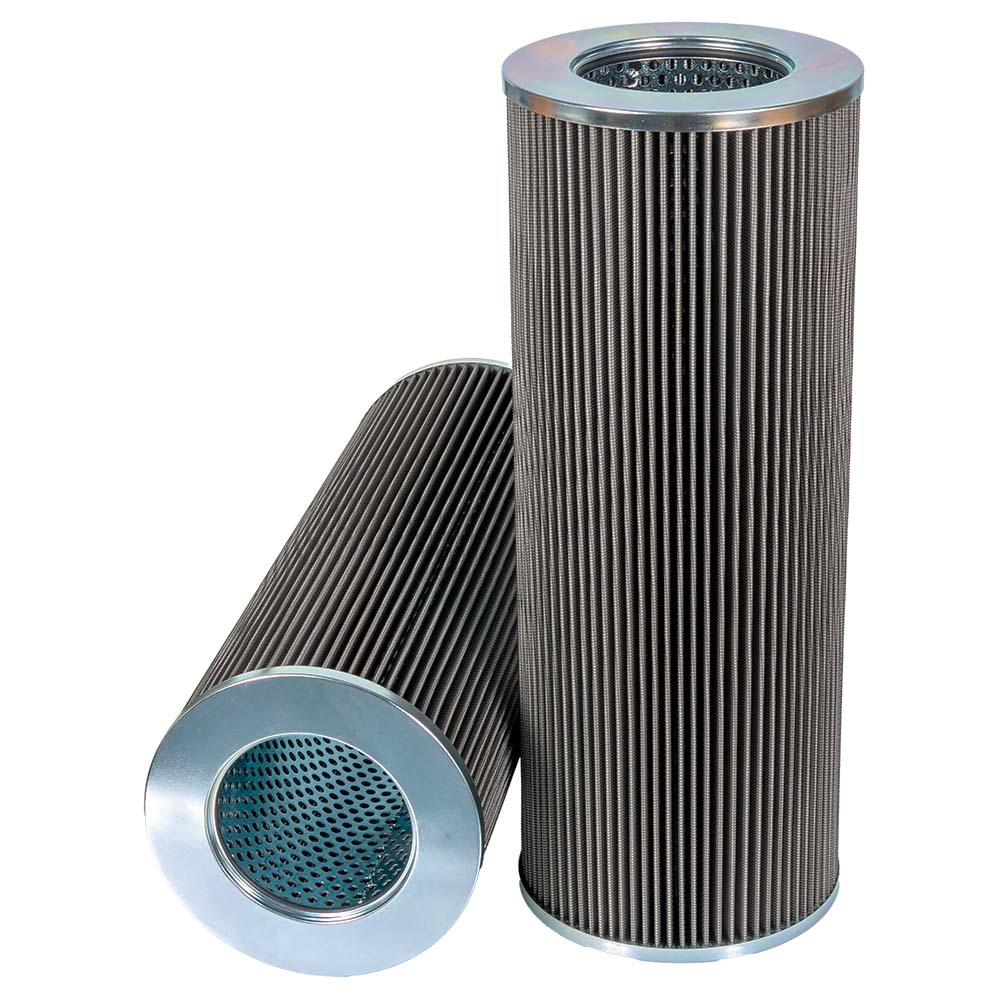

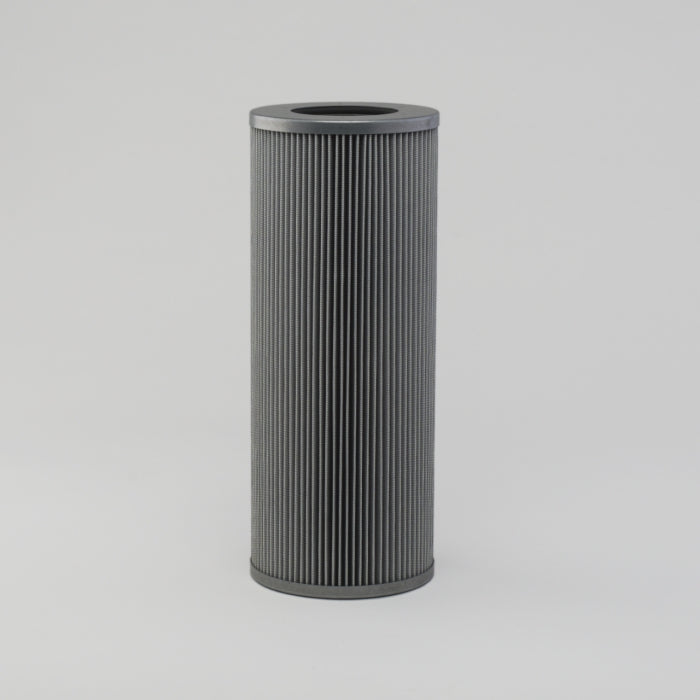

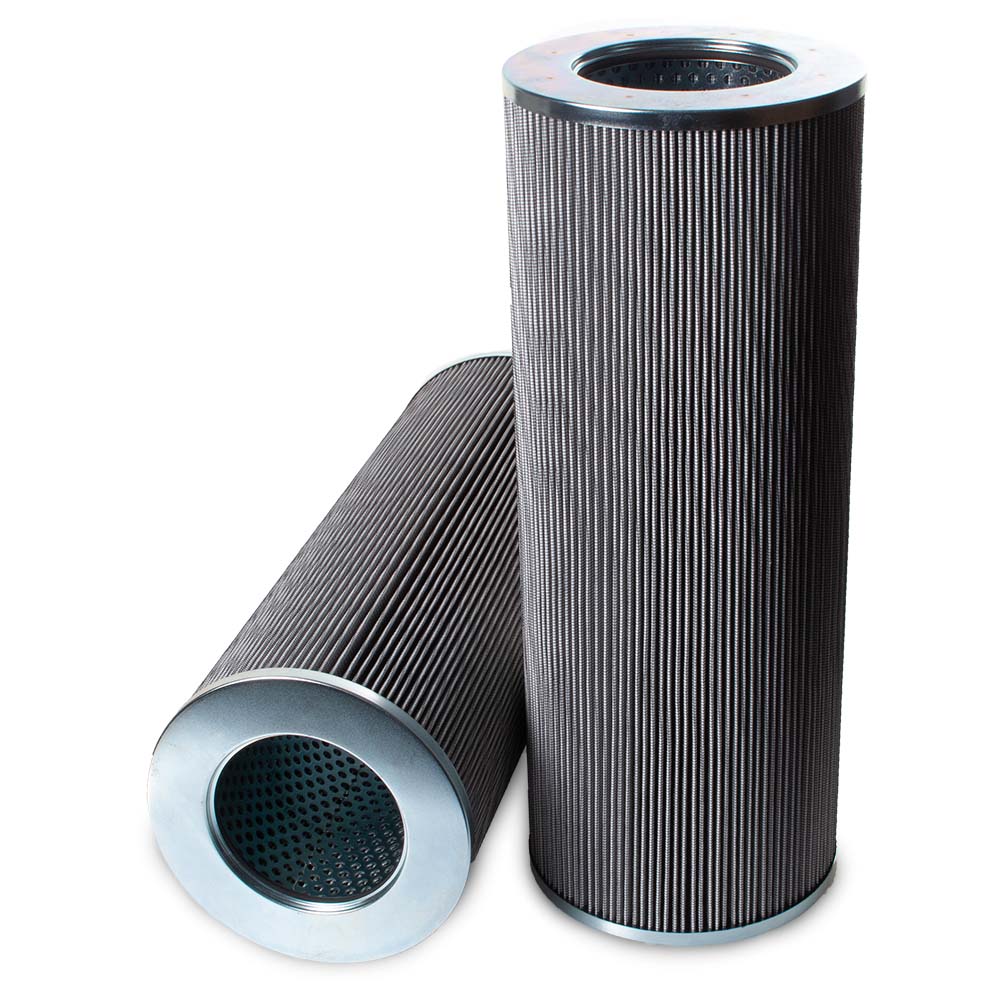

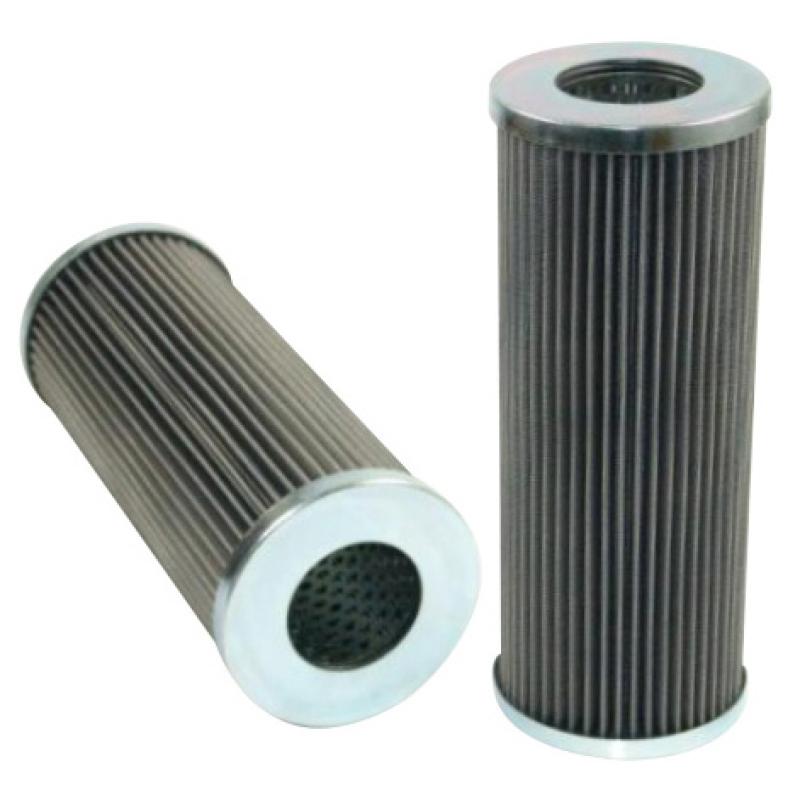

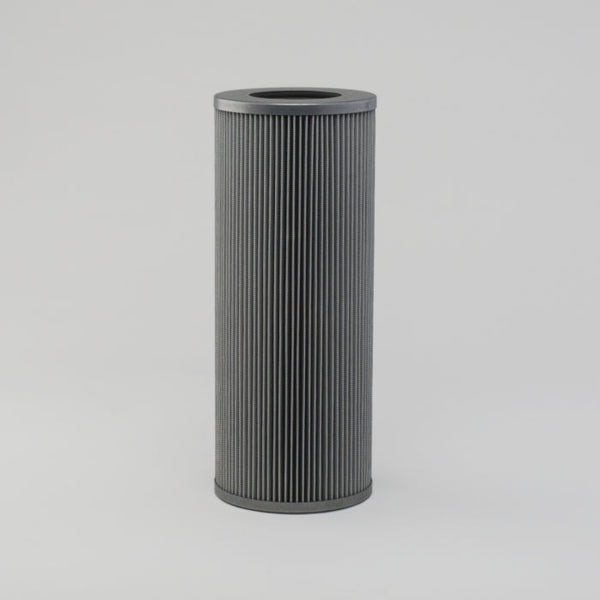

Donaldson P571241 Hydraulic Filter, Cartridge Dt | Replaces the Internormen 306608

Brand: Donaldson
Description

Genuine Donaldson P571241 Hydraulic Filter, Cartridge Dt is engineered with advanced depth filtration technology, offering enhanced dirt retention and fluid cleanliness. It ensures optimal performance in high-pressure hydraulic systems, effectively protecting critical components from wear and extending system life.

This filters robust construction and superior filtration efficiency make it ideal for demanding applications. Its reliable performance helps minimize maintenance costs and system downtime, ensuring consistent operation under tough conditions.

Price Match
$430.00
2.53 kg
0.0141 m³
18 pcs
United States
8421.29.80.90
2.6 kg
0.0095 m³
18 pcs
Italy
8421.99.90
2.68 kg
0.0135 m³
18 pcs
France
8421.99.90
3.46 kg
0.0119 m³
18 pcs
Germany
8421.23.00
2.6 kg
18 pcs
United Kingdom
8421.99.90
Shipping Terms

Description

Genuine Donaldson P571241 Hydraulic Filter, Cartridge Dt is engineered with advanced depth filtration technology, offering enhanced dirt retention and fluid cleanliness. It ensures optimal performance in high-pressure hydraulic systems, effectively protecting critical components from wear and extending system life.

This filters robust construction and superior filtration efficiency make it ideal for demanding applications. Its reliable performance helps minimize maintenance costs and system downtime, ensuring consistent operation under tough conditions.

Specification

StyleDIN Return Filter
MediaWire Mesh
Efficiency 125µ
Outer Diameter 160.0 mm
Inner Diameter 90.5 mm
Length 399.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Internormen Brand Logo

Same Fit-Form & Function

As the Genuine Internormen 306608

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ
Efficiency 2
Style DIN Return Filter
Outer Diameter 160.0 mm
Inner Diameter 90.5 mm
Length 399.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
