MicroFit MFHLP32318 Replaces the Fairey Arlon 190Z140A

190Z140A
190Z140A
Representative product image Product image feedback

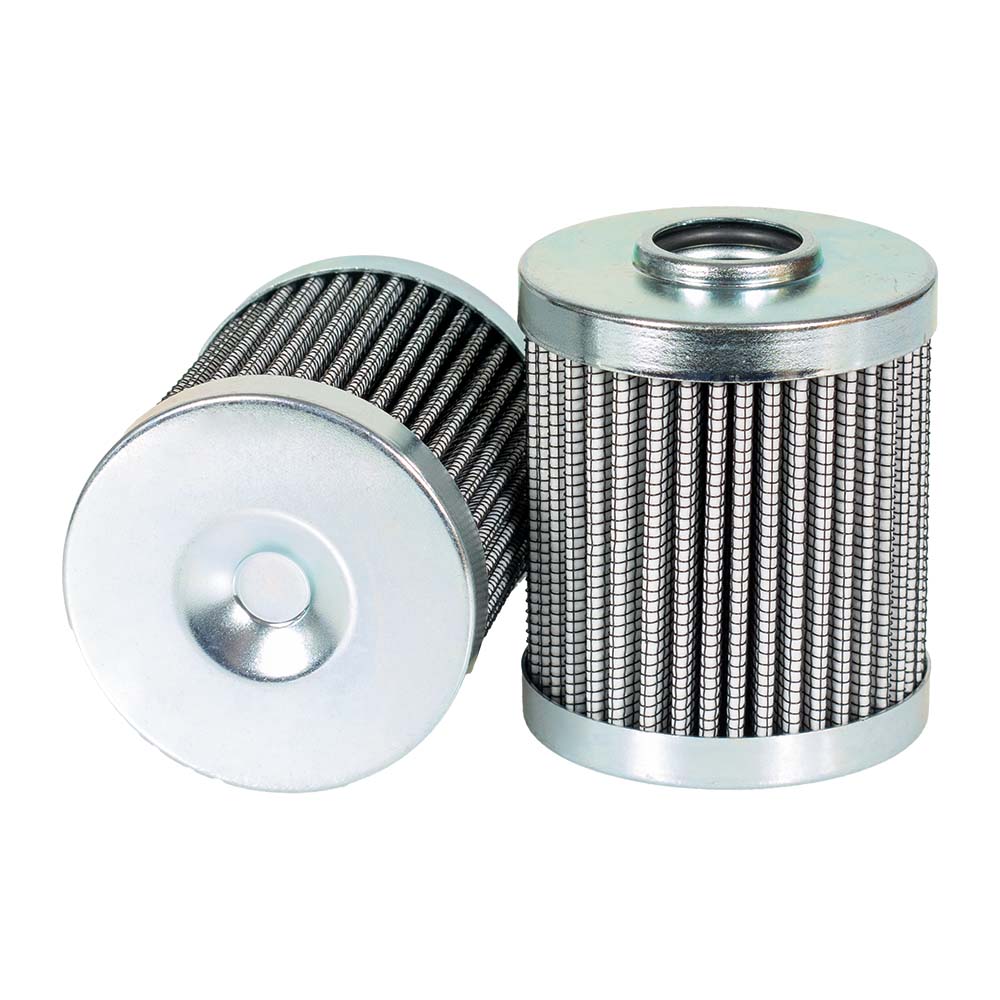

MicroFit® UltraGen III MFHLP32318 Pressure Filter | Replaces the Fairey Arlon 190Z140A

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP32318 is the MICROFIT® approved replacement to the Fairey Arlon 190Z140A. Engineered and manufactured in Great Britain the MFHLP32318 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MICROFIT® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MICROFIT® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

Price Match
$70.00
0.31 kg
0.0002 m³
United Kingdom
8421.99.90
0.14 kg
0.0002 m³
Italy
8421.99.90
0.16 kg
0.0004 m³
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP32318 is the MICROFIT® approved replacement to the Fairey Arlon 190Z140A. Engineered and manufactured in Great Britain the MFHLP32318 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MICROFIT® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MICROFIT® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 140µ
Outer Diameter 55.3 mm
Inner Diameter 19.0 mm
Length 66.5 mm
Δ Collapse Pressure 25 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Fairey Arlon 190Z140A

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
40µ
Efficiency 2
Style Pressure Filter
Outer Diameter 55.3 mm
Inner Diameter 19.0 mm
Length 66.5 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 25 BAR
Seal Nitrile
Temperature Range -30 - +100°C
