Fleetguard LF691A Replaces the Hydac 01284937

01284937
01284937
Representative product image Product image feedback

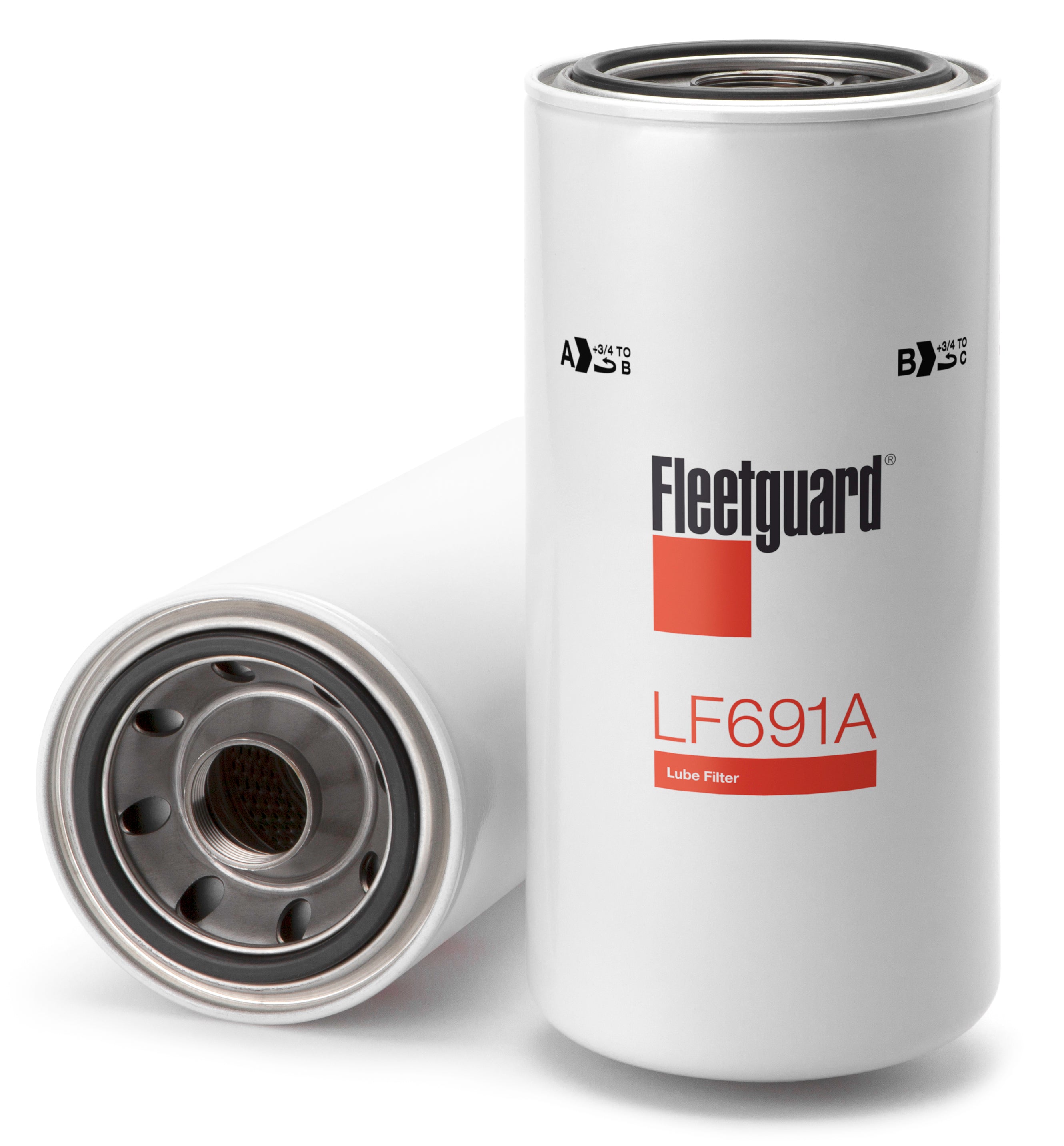

Fleetguard LF691A Lube, Full-Flow Spin-On | Replaces the Hydac 01284937

Brand: Fleetguard
Description

Fleetguard® LF691A spin-on lube filter meets or exceeds OE performance requirements and the new challenges of modern engine technology.

Price Match
$39.00
2.08 kg
0.0072 m³
China
8421.23.00
3.06 kg
0.0068 m³
France
8421.99.90
3.08 kg
0.0081 m³
Italy
8421.29.80.90
2.82 kg
0.0057 m³
Italy
8421.99.90
Germany
Shipping Terms

Description

Fleetguard® LF691A spin-on lube filter meets or exceeds OE performance requirements and the new challenges of modern engine technology.

Specification

StyleSpin-On Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 136.0 mm
Length 309.5 mm
Thread1 1/2"-16 UN 2B
Δ Collapse Pressure 16 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Hydac Brand Logo

Same Fit-Form & Function

As the Genuine Hydac 01284937

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Spin-On Filter
Outer Diameter 136.0 mm
Inner Diameter
Length 309.5 mm
Media Type Glass Fiber
Flow Direction
Thread 1 1/2"-16 UN 2B
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 16 BAR
Seal Nitrile
Temperature Range -30 - +100°C
